Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensate.

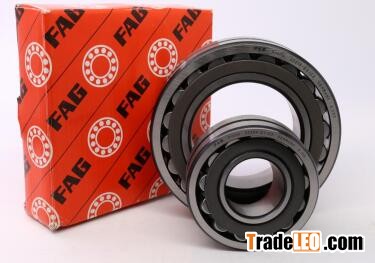

Brand:FAG
Model:22216-ES-C3
Place of origin:Germany
d 80 mm
D 140 mm
B 33 mm
D1 126,8 mm
Da max 129 mm
d2 94,9 mm
da min 91 mm
ds 3,2 mm
ns 6,5 mm
ra max 2 mm
rmin 2 mm
m 2,1 kg Mass
Cr 250000 N Basic dynamic load rating, radial
e 0,22
Y1 3,14
Y2 4,67
C0r 270000 N Basic static load rating, radial
Y0 3,07
nG 6200 1/min Limiting speed
nB 3550 1/min Reference speed
Cur 33500 N Fatigue limit load, radial
