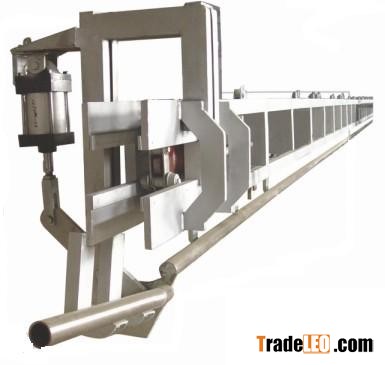

Which mainly used to assist cattle carcass processing convey rail for brisket pre-skinning?skin removed?brisket opening?viscera removed and so on, the detail data as following:1)-Unit: which depend on the capacity of cattle abattoir (slaughter) designing
2)-Rated voltage: 380VAC
3)-Controlling voltage: 24VDC
4)-Driving power: 2.2Kw
5)-Air consume: 5L/Time
6)-the convey speed is fix, the working position stop time is available adjust
7)-Distance of work position: 2400mm
8)-Air cell: EB-215-215
9)-Hoist cylinder: TQGA-160x50-FA
10)-Material:
Iron cast rail hanger
Stainless steel orbit
All rest is hot galvanized steel
