Brand:longyoung
Quantity:100000
Send Inquiry

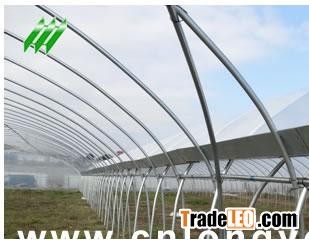

1. Structure Specification:The main structure is consisted by Arch, Gutter, Post and lattice-bars. 10~15 year warranty for the general structure.All structures are hot galvanized.
2. Covering Material:
(1) The roof and the side are covered by 100~200 micron film, 3 year warranty and 5 year life.
(2) Film is fixed by special groove and plastic coated wire.
(3) Insect screen is used to prevent insect from entering into the house on ventilation.
(4) Shade Net is optional.
3. Technical Parameter
Wind Load: 130KM/H, Snow Load: 0.28KN/m2, Max. Rainwater Running Capacity140mm/h
4. Connects.
All connectors are Jointed by bolt,nut and washer and so on. No welding is required.
5. Ventilation
Film Roll-Up system on two sides or roof is optional.
6.Dimension
Tunnel Width can be 6 / 7 / 8 / 9 /10m, length is optional
Your specification is OK.
7.Other Optionals
Irrigation System, Cooling System, Heating System are optionals
