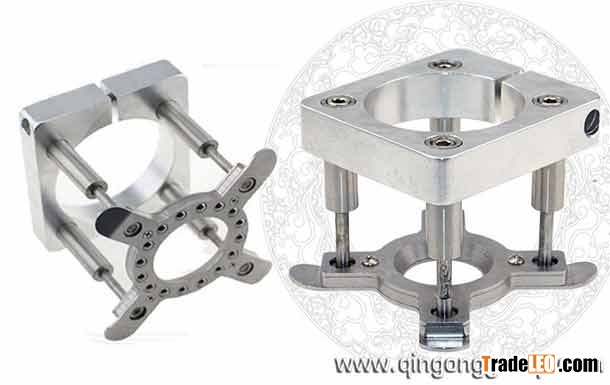

From: www.qingonggroup.com/e_products_show/?id=94Automatic Pressure Foot for CNC Router
Model: spindle diameter 100mm/80mm/65mm
Fix the pressure foot on the cnc router spindle, so pressure foot move with the spindle, and press on the workpiece automatically, keep the workpiece not move up and down. Make the carving precision accurate, the carving product 100% qualified. No need people to press on the workpiece any more, save labor and good to health.
Applications:
Suitable for any kinds of Acrylic, thin aluminum board, plastic board, PVC board, EVA board, double color board, MDF board, etc, especially for panels within 10mm thickness.
Features:
Material: Stainless steel
Diameter: 100mm (80mm/65mm, optional)
Outline square: 132*120mm
Height: 102mm
Bottom inner circle diameter: 55mm
Flexible distance: 28mm
Bottom is the rolling balls, you just need to inject grease into it to lubricate it periodically.
Payment can be made by Western Union, Paypal, T/T.
