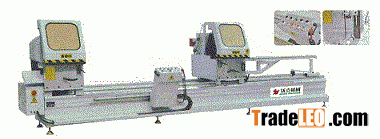

Features: The machine is used for cutting aluminum alloy door and window, curtain walls.
Two blades can change angle automatically to achieve 45°, 90°.
The blades feeding adopts the linear guide rail pair, with high precision.
Input the profiles’ height, the cutting length of 45°, 90° can be displayed.
Multiple profiles’ heights can be input at one time, high efficiency.
The circuit system has the motor phase sequence and missing protection, increase the system’s security.
Technical Parameters:
Power 5.9kw
Voltage 380V, 50 Hz
Cutting Angle 90°, 45°,
Work Pressure 0.6 to 0.8 Mpa
Blade Specifications ø500 x ø30,
Cutting size 480-4200mm
Cutting Width x Height 240 x 120mm
Overall Dimension 5750 x 1300 x 1500mm
Weight about 1550 kg
