Brand:Jinyuan
Quantity:2000
Send Inquiry

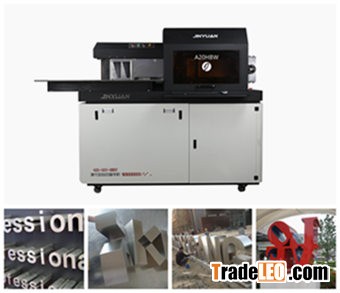

Feeding System ( Progressive clamping feeding device )Slotting System ( plane cutter slotting system )
Bending System ( Double blade alternate bending system)
Suitable Material ( Stainless steel,Galvanized steel, Aluminum)
Material Height (20-200mm)
Material Thickness ( Stainless stel, Galvanized steel=1.5mm, Aluminum=2.5mm)
Size Accuracy ( ±0.1mm )
Input File Format( .dxf, .plt )
Dimensions( L1860MM *W680MM * H1700MM)
Power ( AC220 50Hz 3.0Kw)
Air Source ( 0.6m³ /Min)
Total Weight ( 600Kg)
