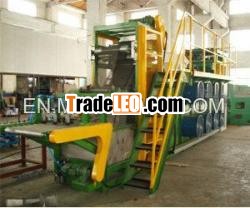

Batch-off Cooler:
It is coupled with internal mixer,rubber roll-head extruder orrubber sheeting mill. The plasticated stock,masterbatch and finalstock from the inernal mixer are calendered into sheet via therubber roll-head extruder or rubber sheeting mill. The sheet isdipped,cooled and dried,then continuously swing and pilled up inthe batch-off cooler.

Characteristic:
1.The take=off adopts steel conveying rollers,equipped with printerand slitter. The take-off and lifting device are driven by a commonAC inverter motor. The conveying speed id adjustable.
2.There are two types of hanging bar driving devices. ForXPG(III)-900,when the piston bars of two side oil cylindersextend,they push the hanging bar. The one way bearing keeps thehanging bar standing when the oil cylinder cylinder piston barretracts,therefore the hanging bar carry out intermittent movement.Other one is driven by one AC inverter motor. The speed of hangingbar is synchronous with the take-off and lifting device.
3.The sheet is uniformly coated with the lubricator by dippingwithout polluting the environment. Its cooling effect is betterthan the spraying.
4.The hanging up area is fully closed,which adopts the blower toblow the sheet at a slant. So it improves the air flowing directionand cooling effect.
5.The robot in the take-off is advanced in china. The take-off canbe controlled automatically.
6.The electric control system adopts a reliable and automaticPC.
NOTES:
1.The machine can be designed as a floorid construction or anover-head construction. The sheet can be output on the first flooror on the second floor or both the first and the second floor.
2.The batch-off cooler is a conbined construction. Customer can addor reduce the middle support as required.
3.Customer can select the transverse strip cutter and the stripslitter according to the processing requirements.
