Model:HGD-100
Key Specifications/Special Features:

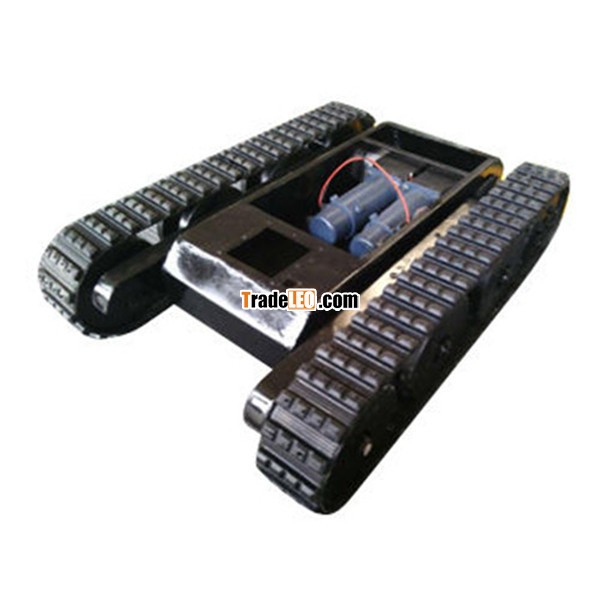

Commodity name: small vehicles rubber track undercarriage
Size: 100mm width rubber track undercarriage
Characteristics:
Rubber track with less damage to the ground surface
Low noise
High running speed
Less vibration
Low ground contact specific pressure
High tractive force
Lightweight
Anti-vibration
Conventional type or interchangeable type rubber track
Application: snowmobile, snow blower or other special machine prototype.
The gap between iron cores is very small so that can support the track roller completely during driving, reduces the shock between machine and rubber track.
Warm notice: only for small vehicle.
Any question,please send us message.
Primary Competitive Advantages:
Country of Origin
Guarantee/Warranty
International Approvals
Packaging
Price
Product Performance
prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted
Main Export Markets:
Asia
Australasia
Central/South America
Eastern Europe
Mid East/Africa
North America
Western Europe
| Length | 910mm |
| Width | 610mm |
| Height | 230mm |
| Rubber Track Width | 100mm |
| Weight | 77kg |
| Sprocket Diameter | 184mm |
| Load-bearig | 400KG |
| Rubber Tracks Specification | |||
| Type:PY-50A | Type:PY-50B | Type:PY-60A | Type:PY-60B |
| link No.54 | link No.46 | link No.66 | link No.50 |
| Pitch:19mm | Pitch:20mm | Pitch:12.7mm | Pitch:18.5mm |
| Width:50mm | Width:50mm | Width:60mm | Width:60mm |
| Total length:1026mm | Total length:920mm | Total length:838.2mm | Total length:925mm |
| Weight:0.5Kg | Weight:0.5Kg | Weight:1.2Kg | Weight:0.44Kg |
| | | | |
| Type:PY-76 | Type:PY-80 | Type:PY-85 | Type:PY-100A |
| link No.120 | link No.108 | link No.24 | link No.50 |
| Pitch:12.7mm | Pitch:15mm | Pitch:59.4mm | Pitch:40mm |
| Width:76mm | Width:80mm | Width:85mm | Width:100mm |
| Total length:1524mm | Total length:1620mm | Total length:1425.6mm | Total length:2000mm |
| Weight:1.92Kg | Weight:1.2Kg | Weight:1.92Kg | Weight:4Kg |
| | | | |
| Type:PY-100B | Type:PY-110 | Type:PY-115 | Type:PY-118A |
| link No.76 | link No.32 | link No.32 | link No.18 |
| Pitch:20mm | Pitch:42mm | Pitch:65mm | Pitch:61mm |
| Width:100mm | Width:110mm | Width:115mm | Width:118mm |
| Total length:1520mm | Total length:1344mm | Total length:2080mm | Total length:1098mm |
| Weight:1.84Kg | Weight:2.12Kg | Weight:Kg | Weight:2.32Kg |
| | | | |
| Type:PY-118B | Type:PY-118C | Type:PY-123 | Type:PY-130 |
| link No.20 | link No.24 | link No.60 | link No.28 |
| Pitch:60mm | Pitch:61mm | Pitch:40mm | Pitch:72mm |
| Width:118mm | Width:118mm | Width:123mm | Width:130mm |
| Total length:1200mm | Total length:1464mm | Total length:2400mm | Total length:2016mm |
| Weight:2.44Kg | Weight:3.9Kg | Weight:8Kg | Weight:11.2Kg |
| | | | |
| Type:PY-135 | Type:PY-136 | Type:PY-140 | Type:PY-148 |
| link No.72 | link No.41 | link No.24 | link No.36 |
| Pitch:18.5mm | Pitch:45mm | Pitch:80mm | Pitch:60mm |
| Width:135mm | Width:136mm | Width:140mm | Width:148mm |
| Total length:1332mm | Total length:1845mm | Total length:1920mm | Total length:2160mm |
| Weight:1.66Kg | Weight:3.56Kg | Weight:5Kg | Weight:16Kg |
| | | | |
| Type:PY-150 | Type:PY-180 | Type:PY-200 | Type:PY-255A |
| link No.22 | link No.42 | link No.60 | link No.30 |
| Pitch:63.4mm | Pitch:65mm | Pitch:61.5mm | Pitch:72mm |
| Width:150mm | Width:180mm | Width:200mm | Width:255mm |
| Total length:1394.8mm | Total length:2730mm | Total length:3690mm | Total length:2160mm |
| Weight:3.6Kg | | Weight:20Kg | Weight:12Kg |
| | | | |
| Type:PY-255B | Type:PY-300 | Type:PY-320 | Type:PY-350 |
| link No.35 | link No.58 | link No.33 | link No.53 |
| Pitch:65mm | Pitch:109mm | Pitch:87mm | Pitch:100mm |
| Width:255mm | Width:300mm | Width:320mm | Width:350mm |
| Total length:2275mm | Total length:6322mm | Total length:2871mm | Total length:5300mm |
| Weight:10Kg | | Weight:22Kg | |
| | | | |
| Type:PY-382 | Type:PY-400 | Type:PY-420 | Type:PY-500 |
| link No.54 | link No.46 | link No.58 | link No.48 |
| Pitch:64mm | Pitch:90mm | Pitch:100mm | Pitch:63.5mm |
| Width:382mm | Width:400mm | Width:420mm | Width:500mm |
| Total length:3456mm | Total length:4140mm | Total length:5800mm | Total length:3048mm |
| Weight:29Kg | | | Weight:43.2Kg |
