Model:AK-F001
Description

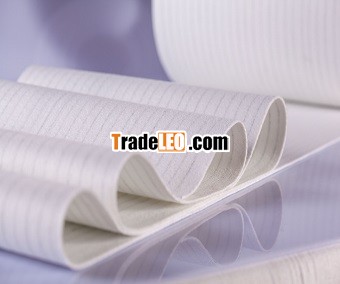

JiangSu AoKai is specialized in needle felt and filter bag for 25 years. Polyester filter bag have many coating ,composite and functional products,such as polyester filter bag ,polyester membrane needle felt ,polyester anti-static needle felt ,polyester water and oil repellent needle felt ,polyester three proofing needle felt,polyester anti-static and membrane needle felt and customized .
Features:
1. Material: MTF mid-temperature filter cloth, steel- plate and rubber rings.
2.Working temperature: 150-celsius-degree normal working Temperature, 170-celsius-degree peak working temperature.
3. Weight standard: 500 g/m2
4. Filtration efficiency up to 99.99%
5. Filtering precision: 200~350L/m2/s.
6. Dimension&Length: As customers requirement.
7. Quality level: Fine strength&ideal air permeability&big durability.
Application:
1. Paints & lacquer industry.
2. Waste water treatment.
3. Pharmaceutical industry.
4. Food industry.
5. Chemical industry.
6. Beer, wine & spirit industry.
7.Asphalt mixing plant
Specification
| Composition | Polyester | |
| Weight (g/m2) | 500±5%g/㎡ | |
| Thickness (mm) | 1.7±5%mm | |
| Air permeability (m3/m2/min) | 120-210 | |
| Tensile strength (Mpa/min) | warp | ＞800 |
| weft | ＞1200 | |
| Liner shrinkage | warp | ≤1.5 |
| weft | ≤1 | |
| Working temperature （degree C ） | 130 | |
| Short time working temperature (degree C） | 150 | |
| Anti-acid | Excellent | |
| Anti-alkali | Excellent | |
| Anti-abrasion | Excellent | |
| The stability of water solution | Medial | |
| Finishing treatment | Singeing, calendaring or Teflon coated | |
Remark
1. The size of filter bags or needle felt can be customized.
2. If your required filter bag is different from our usual one,then please send us drawing picture and choose the material you need,since we also produce the nonstandard filter bag.
3. Free technical support and service.
4. We have 100% new and good quality guarantee,with 1year guarantee of the bag and good after-sales service .
5. Please send us your inquiry details by email for quotation, thanks my friends.
6. Contact : skype:selindagu ,Email :guling@aokai.net.cn.
