port: Shanghai or Other Port  in china

capacity: 100 SET PER MonTH

period for delivery: Within 10 working days confirmed 100%

pack: wooden case to meet long transportation requirements

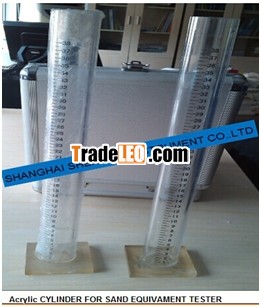

Product Name :     DS-1 Sand Equivalent Tester

 Refering standard :
T0334 “Fine Aggregate Sand Equivalent Test” in the Industry Standard JTJ 058 Specification and Test Methods of Aggregate
for Highway Engineering. The Sand Equivalent Tester vibrates sample using an automatic vibrator to let sample cylinder move transversely along a straight line.

Applications:

The Sand Equivalent Tester is suitable to determine clay or impurities in the fine aggregates, so that to evaluate purity of aggregates.

 Specifications:

1. Vibration period: 180 times/min ±2 times/min;
2. Sample cylinder amplitude: 203±1.0 mm;
3. Power supply: 220V±10%, 50 Hz;
4. Rated power: 130 W;
5. Balance weight piston: 1 kg± 5 g;
6. Plastic sample cylinder:
Inner diameter: 32mm±0.25mm; Height: 420 mm;
7. Flushing tube:
(1) Outer diameter: 6mm±0.5 mm;
(2) Inner diameter: 4mm±0.2 mm;
8. Ambient temperature: ≤35°C;
9. Relative humidity: ≤85%;

 Packing Details :

Gross weight: 45 kg;
Dimension : 564×600×450 mm;
Plywood case
