Model:BMD-800B
Send Inquiry
Application:
Cartons and bottles with trays such as drinking bottles, pure water bottles, beer bottles, etc.

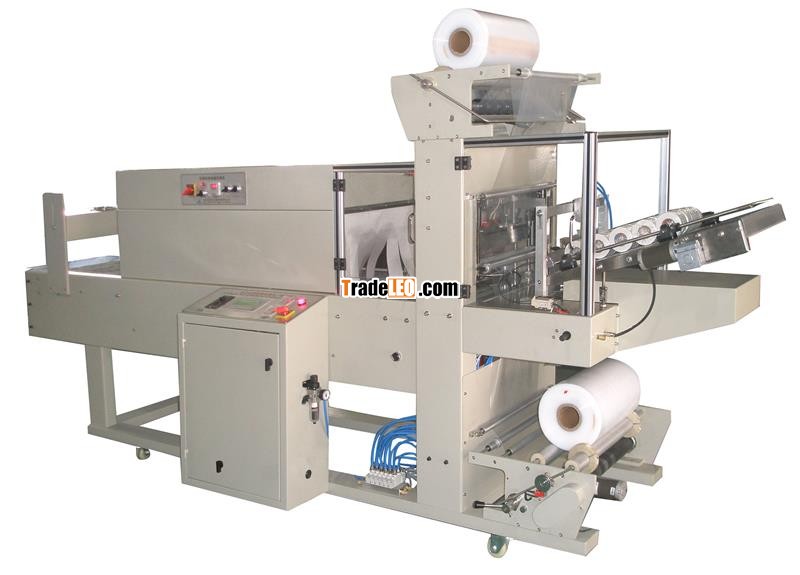

Automatic Carton Tray Hot Shrink Wrapping Machine
If you want to know more information about ourcompany and products, please visit our website at http://www.shrinkpacker.net.
| Technical data | BMD-800B |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L) x 350(W) x 300(H) mm |
| Packing capacity | 8 - 20 packs/min |
| Film type | polyethylene (PE) film |
| Max film size | 630 (width) x 280mm(outer diameter) |
| Power consumption | max. 20kw |
| Shrink tunnel oven size | 1800mm(L) x 700(W) x 400(H) mm |
| Tunnel conveyor speed | variable, 15m/min |
| Tunnel conveyor | silicon coated rods or stainless steel mesh conveyor |
| Working height | 850-950 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated "U" knife and sawtooth knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | powder coated carbon steel |
| Machine dimensions | 4420 x 2590 x 1760mm |
| Machine weight | 1000kgs |
