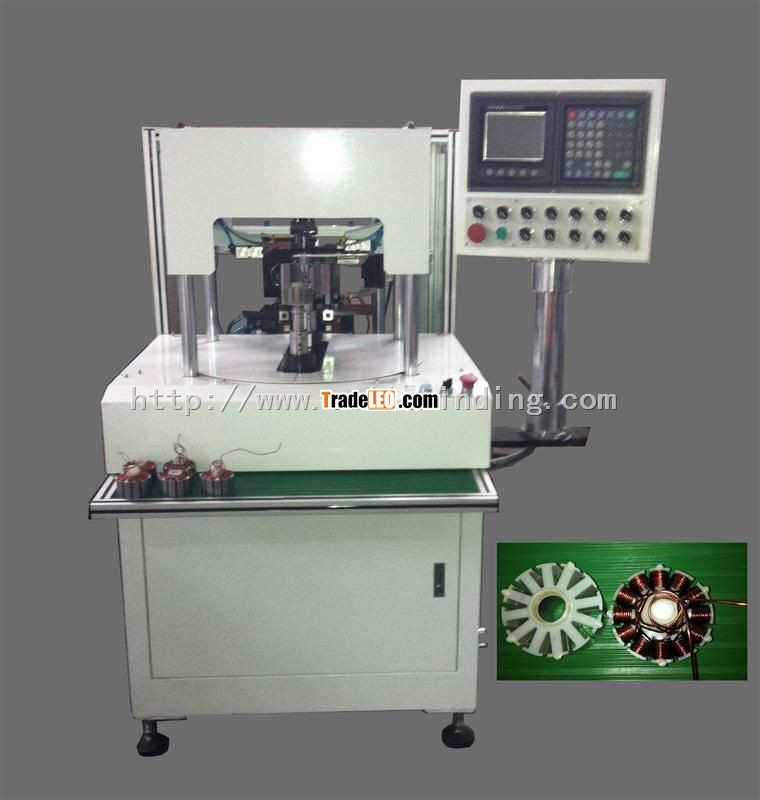

Winding Machine for outside armature rotor winding, motorcycle magneto stator winding,

Magneto winding machine is designed to produce motorcycle magneto, easy to change tooling,

For small quantity output with types of products,suitable for repairing business

with PLC and touch screen panel, easy to operate

Parameter:

Power supply: 220V, 50HZ

Motor: Winding Mitsubshi 1000W servo motor

Arraying Mitsubshi 400W servo motor

Indexing Mitsubshi 400W servo motor

Wire diameter:0.45mm~1.25mm

Unit OD:70~250mm

Spindle: 0~1500rpm

Turns No.0-999

Air pressure: 0.5-0.7Mpa

Pneumatic: Airtac

Capability: 120pcs/shift(8hours Single station)
