Model:BLYJ-10

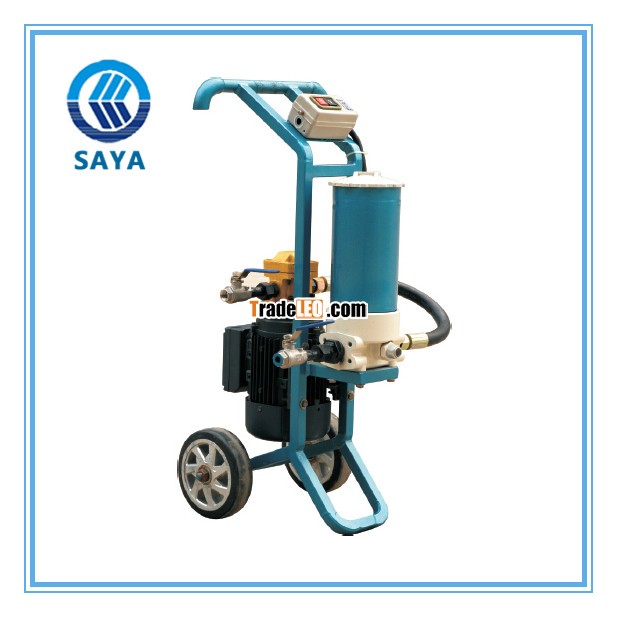

Portable small engine oil purifier BLYJ-10
Application of small engine oil purifier:
To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance.
The by-pass filtration for the working hydraulic lubrication systerm..
Product Introduction of small engine oil purifier:
It is the oil filter which is more portable made by Feiaote company.
It is filled up the hydraulic lubrication equipment with oil and purify oil whenever it is needed which is easy to operate and convenient to carry.
The coarse suction filter can not only protect oil pump but also prolong the life of main filter.
According to different requirements,the filter precision can be selected to reach different oil rate.
Technical Parameter of small engine oil purifier:
| Model No. | BLYJ-6-* | BLYJ-10-* | BLYJ-16-* | |
| Rated Flow | L/min | 6 | 10 | 16 |
| Rated pressure | Mpa | 0.4 | ||
| Loss of pressure | Mpa | ＞0.02 | ||
| Pump-in filtering precision | um | 40 | ||
| Pump-out filtering precision | um | 3 5 10 20 40 | ||
| Motor Power | Kw | 0.18 | 0.25 | 0.35 |
| Power Supply | V | AC380V AC220V | ||
| Weight | Kg | 13 | 16 | 18 |
| M/C size | mm | 380×200×510 | 400×200×510 | 420×200×510 |
