I.   Description

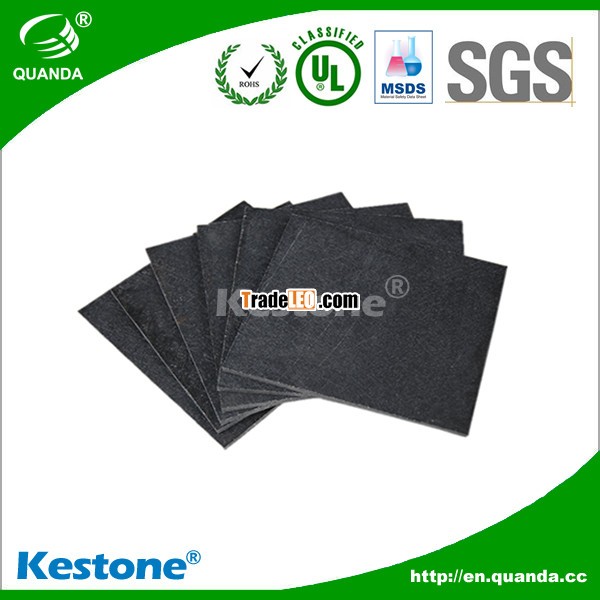

Durostone is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of280°c(max. working temperature below 385 degree 10~20sec).

In addition, durostone have the advantage of easily machining, high intensity and can be easily machining into special mechanical parts.

II. Main Characteristic

1. Normal working temperature at325 ℃, operating temperature up to384 ℃

2. Less distortion, low thermal conductivity

3. Superior dimensional stability, Long life

4. High temperature resistance
5. Resistance to chemical corrosion

6. High mechanical strength

7.Good machinability (low density)

III. Application

 Functions:

1.      Support thin baseboard or soft substrate circuit board

2.      Carry an irregular shape solder pallet

3.      Use multi-pak panel design to improve production efficiency

4.      Prevent the deformation of the solder pallet during high temperature reflow soldering process

5.      Smoothly surface, good endurance, applicable for Teflon spray painting

6.      Avoid gold finger contamination by human contact

7.      Protect bottom side SMT components during the wave soldering process

8.      Prevent the deformation of the baseboard during the wave soldering process

9.      Standardized the width of the production lines, eliminate the width adjustment of the production line

10.   Prevent baseboard being contaminated by the overflow of tin

Applications

1.     Wave solder pallet and reflow pallet

2.     Electronic components automatic cartridge

3.     Solder paste screen printing

4.     SMT Surface Mount technology

5.     IR reflow curing

6.     online testing jig
