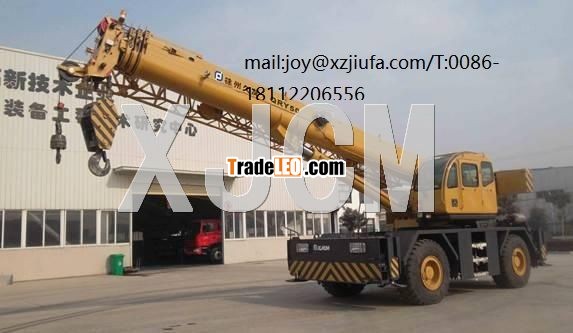

Category

Items

Units

Parameters

Outline Dimension

Overall length

mm

12880

Overall width

mm

3080

Overall height

mm

3625

Axle base

mm

3950

Tread

mm

2500

Weight

Dead weight in travel state

Kg

36140

Axle load

Front axle

Kg

19220

Rear axle

Kg

16920

Power

Engine rated output

Kw/(r/min)

198/2500

Engine rated torque

N.m(r/min)

970/1200-1700

Travel

Travel speed

Max. travel speed

Km/h

40

Turning radius

Min. turning radius

m

6000

Turning radius at swing table tail

m

3620

Min. ground clearance

mm

400

Approach angle

°

20

Departure angle

°

19

Main Performance

Max. total rated lifting load

t

50

Min. rated working radius

m

3

Max. load moment

base boom

KN.m

1575

Fully-extended boom

KN.m

588

Fully-extended boom + Jib

KN.m

300

Outrigger span

Longitudinal

m

6.75

Lateral

m

7.1

Lifting height

base boom

m

10.86

Fully-extended boom

m

32

Fully-extended boom+Jib

m

47.6

Boom length

base boom

m

10.25

Fully-extended boom

m

30

Fully-extended boom+Jib

m

47

Jib installation angle

°

0, 30

Working Speed Parameters

Luffing time

Boom raising time

s

55

Boom descending time

s

90

Boom telescoping time

Boom fully-extended time

s

65

Boom fully retracting time

s

52

Max. swing/slewing speed

r/min

2.0

Outriggers telescoping time

Horizontal outriggers

Extending synchronously

s

12

Retracting synchronously

s

12

Vertical outriggers

Extending synchronously

s

14

Retracting synchronously

s

21

No load

m/min

130

No load

m/min

100
