YC230LC-8
l Enhanced working tools and attachments, reliable and solidstructure.
l All electrical equipment applied are imported and of high quality.
l Long boom is available for this model to reach further workingdistance. Its performance ranks top among domestic products.

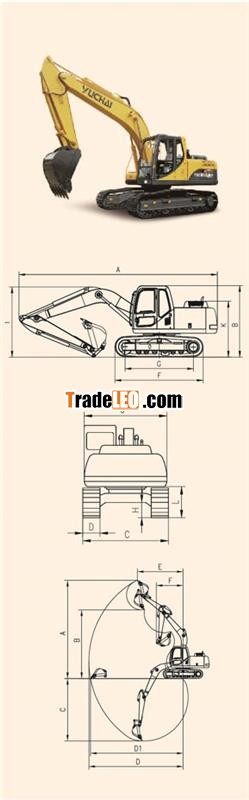

Operating parameters
| Code | Item | Unit | YC230LC-8 | |
| 885C | 885E | |||
| A | Max. Digging Height | mm | 9680 | |
| B | Max. Dumping Height | mm | 6770 | |
| C | Max. Digging Depth | mm | 6645 | |
| D | Max. Digging Radius | mm | 9935 | |
| D1 | Max. Horizontal Digging Length | mm | 9780 | |
| E | Max. Digging Height Radius | mm | 5790 | |
| F | Min. Slewing Radius | mm | 3425 | |
|
| Max. Digging Force | kN | 145 | |
Dimension parameters
| Code | Item | Unit | YC230LC-8 | |
| 885C | 885E | |||
|
| Operating Weight | kg | 22000 | 21500 |
|
| Standard Bucket Capacity | m3 | 1.05 | 1.05 |
|
| Engine |
| CUMMINS 6B5.9 | CUMMINS QSB6.7 |
|
| Power of Engine | kw/rpm | 112/1950 | 116/2000 |
| A | Machine Length | mm | 9540 | |
| B | Machine Height | mm | 2960 | |
| C | Overall Width | mm | 2990 | |
| D | Crawler Width | mm | 600 | |
| F | Crawler Length | mm | 4446 | |
| G | Wheel-base | mm | 3650 | |
| H | Min. Ground Clearance | mm | 479 | |
| I | Overall Height | mm | 3080 | |
| J | Width of Platform | mm | 2700 | |
| K | Height of Engine Hood | mm | 2300 | |
| L | Height from Floor to Platform | mm | 1045 | |
|
| Width of Bucket | mm | 1310 | |
|
| Walking Speed(Low/High) | km/h | 5.5 | |
|
| Platform Slewing Speed | rpm | 11.5 | |
