Model:PCL2012
Send Inquiry

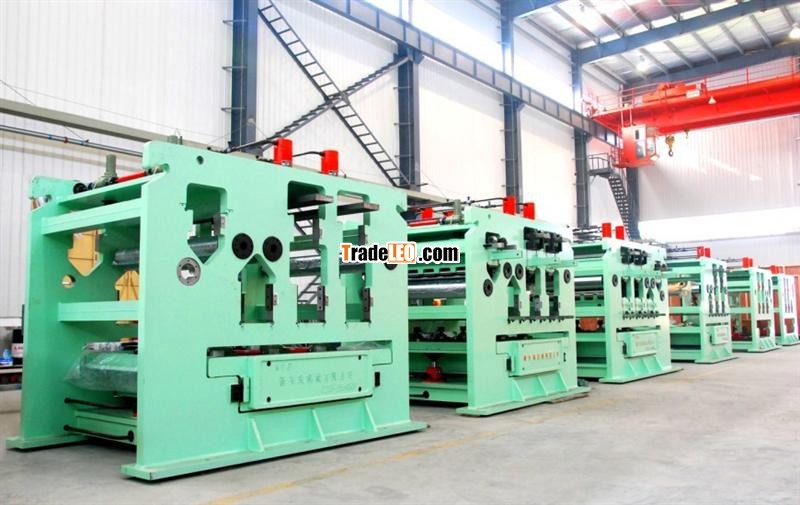

Tension Leveler machine
1. Widely used in galvanized line and finishing line.
2. Siemens VAI structure.
3. ISO9001: 2008(with design)
4. The largest manufacturer of tension leveler in China.
5. The roll system is easy to change.
| No. | Item Name. | Details | value | unit |
| 1 | Strip spec. | Material | straight carbon steel plate | |
| thickness | 0.1-3 | mm | ||
| width | ≤ 2100 | |||
| 2 | Max. speed | 300 | m/min | |
| 3 | Thread speed | 20 | m/min | |
| 4 | Max. elongation | 2% | ||
| 5 | Finished strip accuracy | 3-5I | ||
| 6 | Ø 28 Bending roll units | dia. | φ 28/φ 40/φ 74 | mm |
| roll length | ≤ 2300 | mm | ||
| qty | 4 | sets | ||
| 7 | φ 45 Leveling roll units | dia. | φ 28/φ 40/φ 74 | mm |
| roll length | ≤ 2300 | mm | ||
| qty | 1 | sets | ||
| 8 | φ 60 Leveling roll units | dia. | φ 60/φ 74 | mm |
| roll length | ≤ 2300 | mm | ||
| qty | 1 | sets | ||
| 9 | Leveling roller | dia. | φ 190 | mm |
| roll length | ≤ 2300 | mm | ||
| qty | 4 | pcs |
