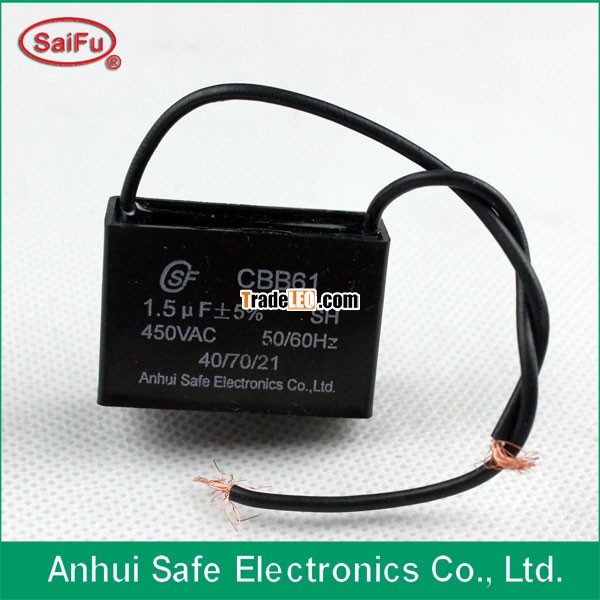

Model:cbb61 capacitor
AC motor capacitor details:
CBB61 capacitor description
CBB61 takes heavy-edge metallized Al/Zn film as electrodes and dielectric. It is impregnatedwith flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.
CBB61 capacitor data:
| Product type | polypropylene Film Capacitor |
| Capacitance range | 1uF~16uF |
| Capacitor Tolerance | ±5% |
| Climate Type | 40/70/21 or 40/85/21 |
| Rated Voltage | 200VAC,250VAC,370VAC,400VAC, 440VAC,450VAC,500VAC,550VAC,600VAC, 630VAC,660VAC |
| Rated frequency | 50Hz/60Hz |
| Operating Temperature | -40° C~+70° C /-40° C~+85° C |
| Class of safety protection | P0/P2 |
Testing voltage | T-T: 2.0Un/60S |
| Insulation resistance | > =3000s |
Tangent of loss angle of a capacitor | tanσ ≤ 0.0020 (100Hz) |
| Life expectancy | ClassB, ClassC |
CBB61 capacitor size:
Rated voltage(VAC) | Normal capacitance(uF)
| Size | ||
L | W | H | ||
200,250,370, 400,440,450, 500,550,600, 630,660 | 1,1.2,1.5,2, 2.5,3,3.5,4,4.5, 5.,6,6.5,7,8, 10,12,14,16, | 31,37,38,47, 48,58 | 14,17,18, 21,22,26, 34 | 24,27,28,29,31, 34,38,40,44,52 |
CBB series capacitors:
CBB61 capacitor certificates:
why choose Anhui safe!
1.we are very professional in capacitor
we have 22 years exprience in capacitor industry , 7 years export exprience and 25 industry patents.
2.High quality capacitor
To ensure our product quality ,we have got the ISO9001 quality system certificate and CQC certificate and so on.
3.we are capacitor manufacturer
we have modern factories and advanced equipment ,professional team on capacitor.
