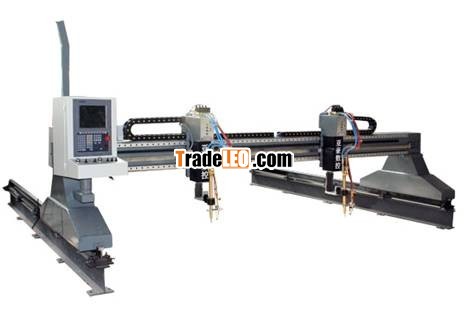

CNC Plasma Cutting Machine

The design of the based on a long experience in the field of CNC Plasma Cutting Machines. The large range of table sizes and Plasma Cutting Sources (conventional as well as high-definition), means that we can offer you the perfect machine for your specific application.

With its macro-based graphical programming system and easily accessible working area, The user-friendly CNC Plasma Cutting Machine.

The manufactured to the highest standards and fully according CE safety rules.

The optimum price/quality ratio of the translates itself into a profitable investment

Standard

• Monobloc frame structure with dual drive gantry
• Cutting table with pneumatically controlled extraction chambers
• CNC control with 15” TFT colour-graphics screen and keyboard on separate stand, macrobased software with grid nesting, 25 MB programme memory and network card
• Arc Voltage Height Control Unit
• CE safety light guard
•  Conventional or High-Definition Plasma System

The robust, over-dimensioned mecano-welded frame structure integrates special chambers for extraction of the fumes. The selective opening of these chambers, pneumatically controlled by the position of the gantry, guarantees very effective fume extraction.

To ensure optimum cutting accuracy and speed, the gantry of the rests on over-sized linear guides and is driven on both sides by brushless AC Servo motors and rack-and-pinion systems (X-axes of the machine).

Two over-sized linear guides are mounted on the gantry itself for accurate Y-movement of the cutting head rest. The Y-axis is also controlled by a brushless AC Servo motor with rack-and-pinion system.

The integrated Z-axis controls the height of the cutting head by means of a DC motor with spindle.

We offer the most appropriate technology, conventional or high-definition plasma cutting systems, for your specific application. We utilize the experience of well-known manufacturers of Plasma Systems, like HYPERTHERM.

Plasma Cutting Technology is known for its high productivity and low cost, and can be used for a broad range of thicknesses.

The latest types of plasma with High-Definition Technology produce an excellent perpendicularity of cut, high speeds and clean cutting results.

The CNC controlled machine for oxy-fuel cutting or a combination of oxy-fuel and plasma cutting. We can offer a machine with length up to 20 meter and width up to 6 meter, with a maximum number of 6 oxy-fuel cutting torches (with or without 1 plasma system).

Specifications
