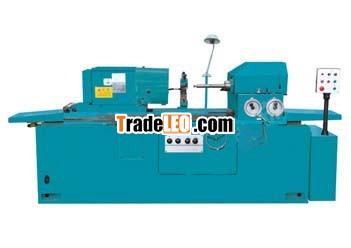

MS - 2 deep hole grinding machine
Main features:
★Feed and compensation of the machine tools by means of two independent driving mechanism is carried out. Feed system with fixed distance grinding function, using manual or hydraulic two feeding way.
★The machine is equipped with jumping mechanism, so don't have to manually after exit grinding wheel for measurement or dressing on the knife.
★The workbench consists of stop motion to retreat quickly, the distance can be adjusted according to the need to retreat quickly, in order to reduce auxiliary time.
★The workbench start handle is equipped with safety interlock the workbench, ensure safety during loading and loading and unloading and measurements.
★The maximum speed of machine tool spindle is 24000 RPM, in order to improve the grinding.
★Special orders. Can be modified electric spindle inverter to grinding small diameter of the inner hole.
Specification parameter table
Machine tool model | MS - 2 deep hole grinding machine | |
Grinding diameter (mm) | φ5-φ100 | |
Maximum grinding depth (mm) | 350 | |
Rotary workpiece diameter (mm) | Enclosure (mm) | φ260 |
Cover (mm) | φ480 | |
Maximum turning Angle of the head of a bed (°) | 20 ° | |
Workpiece rotational speed (r/min) | 180-500 Grade 4, | |
Grinding wheel rotational speed (r/min) | 10000-24000 | |
Machine total power (kw) | 5.55.5 | |
Artifacts motor power (kw) | 0.75/1.5 | |
The grinding wheel motor power (kw) | 2.2 | |
Machine tool appearance size (mm) | 3163 x 1260 x 1300 | |
Machine weight (kg) | 2500 | |
Work precision (standard specimen) | Inner hole roundness （μm） | 2.5 |
Bore cylindricity（μm） | 4 | |
Inner hole surface roughness （μm） | Ra0.63 | |
