Input Voltage Range 380/220V 15%
Input Frequency Range 47-63Hz
Output Voltage Range 0-rated input voltage
Output Frequency Range 0-600Hz
Overload Capacity:60s with 150% of rated current, 10s with 180% of rated current.
Self study motor parameter function
Control Mode: Sensorless Vector Control (SVC),Constant Torque,V/F Control.
Speed Accuracy: Sensorless Vector Control 0.5% of maximum speed (SVC)
Starting Torque: 150% of rated torque at 0.5Hz (SVC).
Programmable Timing Running(Simple PLC)
All model are integrated IGBT
The malfunction ratio is 0.1% within 18 months warranty.

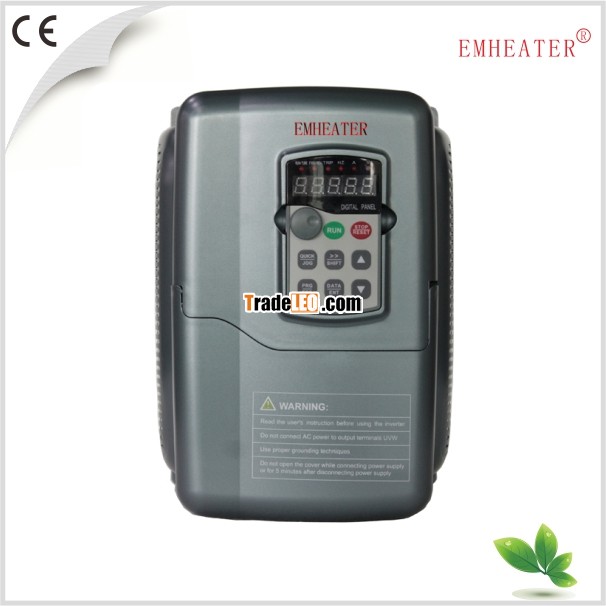

EM9-G1 Vector Control Inverter For General Use 180-240V
Single phase input 3phase output
Model No. Voltage Power Current G.W Packing size Installation dimension
(V) (KW) (A) (KG) H/W/D(mm) H/W/P(mm)
EM9-G1-0d4 220 0.4 2.5 3 150*96*134 140/83.5/ 3.5
EM9-G1-d75 220 0.75 4
EM9-G1-1d5 220 1.5 7
EM9-G1-2d2 220 2.2 10 3.5 189*124*160 166/111/ 5
EM9-G1-004 220 4.0 16 4.5 236*149*180 210/136/ 5.5
EM9-G1-5d5 220 5.5 23
EM9-G3 Vector Control Inverter For General Use 360-440V
3 phase input 3phase output
Model No. Voltage Power Current G.W Packing size Installation dimension
(V) (KW) (A) (KG) H/W/D(mm) H/W/P(mm)
EM9-G3-d75 380 0.75 2.5 3.5 189*124*160 166/111/ 5
EM9-G3-1d5 380 1.5 4
EM9-G3-2d2 380 2.2 6
EM9-G3-004 380 4.0 9 4.5 236*149*180 210/136/ 5.5
EM9-G3-5d5 380 5.5 13
EM9-G3-7d5 380 7.5 17 7 275*194*207 255/176/ 5.5
EM9-G3-011 380 11 25
EM9-G3-015 380 15 32 18 370*272*226 350/170/ 9
EM9-G3-018 380 18.5 37
EM9-G3-022 380 22 45 25 465*302*241 444/200/ 9
EM9-G3-030 380 30 60
EM9-G3-037 380 37 75 50 610*360*300 590/250/ 9
EM9-G3-045 380 45 90
EM9-G3-055 380 55 110
EM9-G3-075 380 75 150 90 684*424*324 659/300/ 11
EM9-G3-093 380 93 176
EM9-G3-110 380 110 210 120 880*500*338 858/320/ 11
EM9-G3-132 380 132 250
EM9-G3-160 380 160 300 180 1410*574*430 1410/574/ With cabinet
EM9-G3-185 380 185 340
EM9-G3-200 380 200 380 250 1600*780*470 1600/780 With cabinet
EM9-G3-220 380 220 420
EM9-G3-250 380 250 470
EM9-G3-280 380 280 520 350 1700*850*498 1700/850 With cabinet
EM9-G3-315 380 315 600
EM9-G3-350 380 350 640 400 1700*850*523 1700/850 With cabinet
EM9-G3-400 380 400 690
EM9-G3-450 380 450 750
EM9-G3-500 380 500 860 500 2220*1200*550 2220/1200 With cabinet
EM9-G3-560 380 560 950
EM9-G3-630 380 630 1100
EM9-P3 Vector Control Inverter For Fan Pump Use 360-440V
3 phase input 3phase output
Model No. Voltage Power Current G.W Packing size Installation dimension
(V) (KW) (A) (KG) H/W/D(mm) H/W/P(mm)
EM9-P3-1d5 380 1.5 4 3.5 189*124*160 166/111/ 5
EM9-P3-2d2 380 2.2 6
EM9-P3-004 380 4.0 9
EM9-P3-5d5 380 5.5 13 4.5 236*149*180 210/136/ 5.5
EM9-P3-7d5 380 7.5 17
EM9-P3-011 380 11 25 7 275*194*207 255/176/ 5.5
EM9-P3-015 380 15 32
EM9-P3-018 380 18.5 37 18 370*272*226 350/170/ 9
EM9-P3-022 380 22 45
EM9-P3-030 380 30 60 25 465*302*241 444/200/ 9
EM9-P3-037 380 37 75
EM9-P3-045 380 45 90 50 610*360*300 590/250/ 9
EM9-P3-055 380 55 110
EM9-P3-075 380 75 150
EM9-P3-093 380 93 176 90 684*424*324 659/300/ 11
EM9-P3-110 380 110 210
EM9-P3-132 380 132 250 120 880*500*338 858/320/ 11
EM9-P3-160 380 160 300
EM9-P3-185 380 185 340 180 1410*574*430 1410/574/ With cabinet
EM9-P3-200 380 200 380
EM9-P3-220 380 220 420 250 1600*780*470 1600/780 With cabinet
EM9-P3-250 380 250 470
EM9-P3-280 380 280 520
EM9-P3-315 380 315 600 350 1700*850*498 1700/850 With cabinet
EM9-P3-350 380 350 640
EM9-P3-400 380 400 690 400 1700*850*523 1700/850 With cabinet
EM9-P3-450 380 450 750
EM9-P3-500 380 500 860
EM9-P3-560 380 560 950 500 2220*1200*550 2220/1200 With cabinet
EM9-P3-630 380 630 1100
