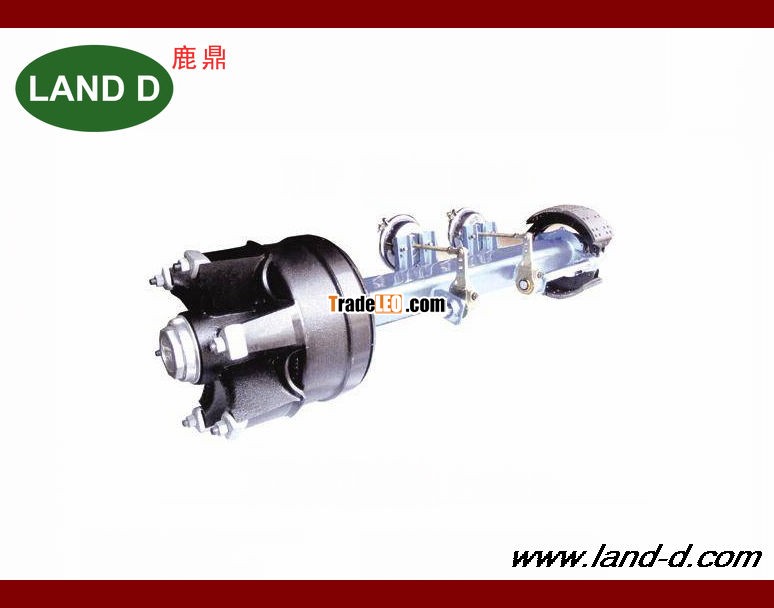

Features:

1. 5&6 Spoke wheels ASTM A-536 cast ductile iron.

2. Super strong for tough applications.

3. For all North American type spindle configuations.

4. Breake components interchange with North America style fast change brakes.

5. High quality non-asbestos lining meets U.S.A standard.

6. Easy for ABS installation.

7. imported grease from U.S.A.

8.Axles meet Australian ADR and meet U.S.A.FMVSS-121 requirements.

Specifications:

Model: KP-12:

Beam rating: 12T, 13T,  16T.

Axle track: 1816-1840mm;

Air chamber: 400mm, 424mm;

Tube size: 127*127*12mm, 150*150*14mm;

Brake size: 420*180/220mm;

Recommended wheel: 20"/22.5";

Our company:

1. LAND is the biggest professional and experienced manufacture of semi-trailer parts in China. We can supply axle, fifth wheel, suspension, kingpin, container twist lock, etc.

2. Superior quality and good after-sale service is our forever pursuit.

3. Moreover,Land has been authorized to product the American KIC axle. Also we are OEM factory for YORK suspension and the only manufacture in China which can produce JOST type casting fifth wheel .

4. We are expect to having long coorperation with you.
