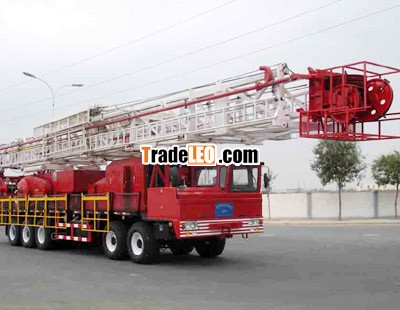

Technical parameters of workover rig

1, Service depth (m)                      7000 (2-7/8 "tubing)

2, Workover depth (m)                    5800 (3-1/2 "drill pipe)

3, Nominal hook load lb (kN)              1000

4, Max Hook load lb (kN)                  1200

5, Engine rated power                      429 kw / 2100 RPM

6, Derrick height (m)                       32

7, Max speed (km/h)                        55

8, Platform height (m)                      17/18.5 / and m (user requirements can be installed)

9, Traveling block                          4 x 5

10, Wire diameter (mm)                    26

11, Physical size (mm)                     12800 x 2850 x 2986

12, Wheelbase (mm)                       1350 + 5100 + 1350 + 1350

13, Wheel tread (mm)                      2430

14, Classis driven                          10 x 8

15, Front suspension/rear suspension (mm)  1700  / 2200
