Model:ZG
Send Inquiry

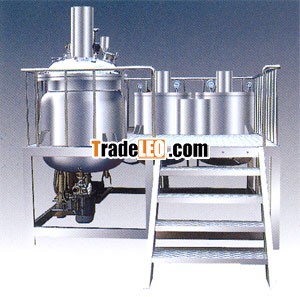

The vacuum machine produced by our company is widely used for manufacturing paste-like products, toothpaste, cosmetics,foods and chemistry industry, etc.. This equipment includes paste machine, pre-mix boiler, gluewater boiler, powder material hopper, colloid pump and operation platform.
Main Technical Parameters
Type | ZG-100 | ZG-700 | ZG-1300 |
Volume | 100 L | 700 L | 1300 L |
Power of Vacuum Pump | 3 kW | 5.5 kW | 7.5 kW |
Hydraulic Pump | 1.1 kW | 1.5 kW | 2.2 kW |
Lifting Height of Vessel Cover | 800 mm | 1000 mm | 1000 mm |
Dimension | 2450×1500×2040 mm | 4530×3800×2480 mm | 1920×3910×3200 mm |
Weight | 2500 kg | 3000 kg | 4500 kg |
