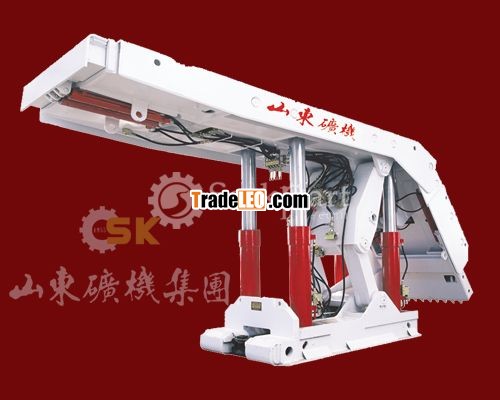

Model:ZF2200/16/24-ZF15000/26/55
Type | work resistance（kN） | initial supporting force（kN） | height（mm） | center distance（mm） | supporting strength（MPa） |
ZF2200/16/24 | 2200 | 1808 | 1600-2400 | 1250 | 0.48-0.55 |
ZF2800/16/24 | 2800 | 2534 | 1600-2400 | 1250 | 0.55-0.60 |
ZF2800/16/24 | 2800 | 2534 | 1600-2400 | 1500 | 0.46-0.52 |
ZF3200/16.5/25 | 3200 | 2860 | 1650-2500 | 1250 | 0.58-0.62 |
ZF3200/16/26 | 3200 | 2860 | 1600-2600 | 1500 | 0.50-0.55 |
ZF3800/16/26 | 3800 | 3206 | 1600-2600 | 1500 | 0.55-0.60 |
ZF4000/16/26 | 4000 | 3206 | 1600-2600 | 1500 | 0.56-0.62 |
ZF4000/17/28 | 4000 | 3206 | 1700-2800 | 1500 | 0.56-0.62 |
ZYF4000/17/28 | 4000 | 3094 | 1700-2800 | 1500 | 0.55-0.60 |
ZF4200/17/28 | 4200 | 3958 | 1700-2800 | 1500 | 0.58-0.65 |
ZF4800/17/32 | 4800 | 3958 | 1700-3200 | 1500 | 0.65-0.70 |
ZF5000/17.5/28 | 5000 | 3958 | 1750-2800 | 1500 | 0.68-0.72 |
ZF5000/17/32 | 5000 | 3958 | 1700-3200 | 1500 | 0.68-0.72 |
ZF6000/18/33 | 6000 | 5235 | 1800-3300 | 1500 | 0.70-0.76 |
ZF6200/18/35 | 6200 | 5235 | 1800-3500 | 1500 | 0.68-0.75 |
ZF6800/17/32 | 6800 | 6185 | 1700-3200 | 1500 | 0.82-0.90 |
ZF6800/20/32 | 6800 | 6185 | 2000-3200 | 1500 | 0.80-0.88 |
ZF7200/20/32 | 7200 | 6185 | 2000-3200 | 1500 | 0.90-0.95 |
ZF8000/20/38 | 8000 | 6185 | 2000-3800 | 1500 | 0.94-0.98 |
ZF8400/22/36 | 8400 | 6185 | 2200-3600 | 1500 | 0.95-1.01 |
ZYF8500/18/35 | 8500 | 6412 | 1800-3500 | 1750 | 0.90-0.96 |
ZF10000/20/40 | 10000 | 7758 | 2000-4000 | 1750 | 1.05-1.10 |
ZF12000/24/45 | 12000 | 10133 | 2400-4500 | 1750 | 1.10-1.18 |
ZF13000/25/50 | 13000 | 10133 | 2500-5000 | 1750 | 1.20-1.27 |
ZF15000/26/55 | 15000 | 12825 | 2600-5500 | 1750 | 1.35-1.42 |
