【Summarize】

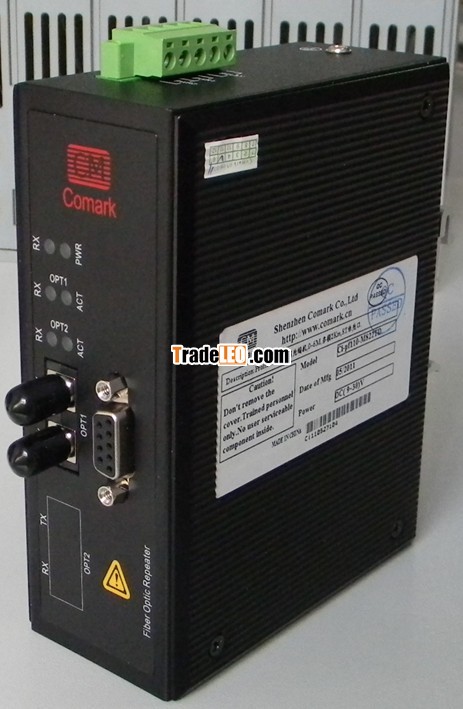

The Ci-pf110/120 series is designed for use in optical Profibus-DP fieldbus networks. Feature with data rate up to 12M,35mm DIN rail mounting, redundancy power input(9V~30VDC),relay output alarm.

Ci-pf110 contains one fiber optic transceiver and one electrical interface.Ci-pf120 contains two fiber optic transceivers and one electrical interface. The repeaters provide fiber optic connection in point to point, star, daisy chain topologies networks.

【Specifications】

Electrical interface

• Signal type:Profibus-DP
• Data Rate: 0~12M
• Wire Cable Connection: DB9 Fe-male
• Wire End Termination: None

Optical interface

• Wave length: MM 850nm、SM1310 nm、1550nm
• Fiber type: multi mode 50/125 um、62.5/125 um、100/140um;single mode 8.3/125 um、9/125um、10/125um
• Transmission distance: MM 2Km, SM 20Km
• Fiber interface type: ST/SC/FC (optional); ST (standard configuration)

Relay

• Contact rating:DC30V@1A Max
• Fiber link fault and No voltage input alarm
• 5-pin Pluggable Screw Terminal

Power

• Input Voltage: 24VDC(9VDC~30VDC)
• 5-pin Pluggable Screw Terminal
• Support dual power backup
• Consumption: 24VDC@60mA(＜1.5W)
• With DC1000V voltage isolation and reverse connect protection

Mechanical

• Dimensions: 132mm×52mm×105mm(H×W×D)
• Casing: IP30 protection, metal case
• Installation: 35mmDIN-Rail, Wall Mounting.
• Weight :800g

Environmental

• Operating Temperature: -10 to70℃(-40℃to85℃optional)
• Storage Temperature:-45℃to85℃
• Ambient Relative Humidity: ≤ 90% (non-condensing)

【Order information】
