BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device. It joins rapidly, keeps in touch with the characteristic such as being reliable, apply to the radio equipment and electron tube instrument field and join the coaxial cable of the radio frequency extensively.
TECHNICAL CHARACTERISTICS Temp.range；-65～+165°C (PE Cable  -40～+85°C) Vibration；MIL-STD-202,Method 213 Impedance50Ω-75Ω Frequency Range；DC～4GHz Working Voltage；500V max Withstand Voltage；1500V rms  Contact Resistance Center Contact≤1.5 mΩ Outer Contact≤1 mΩ Insulation resistance≥5000 MΩ
Straight≤1.22 Right angle≤1.3

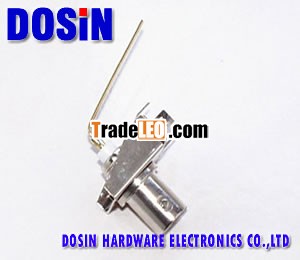

Durability(mating)≥500（cycles） BNC connector
1. Low Cost
2. High Performance
3. Easy Installation

Features;
1.Bayonet coupling, small size and low cost.
2.50Ω and 75Ω are available and intermateable
3.Various options for different applications
