Model:K-5000

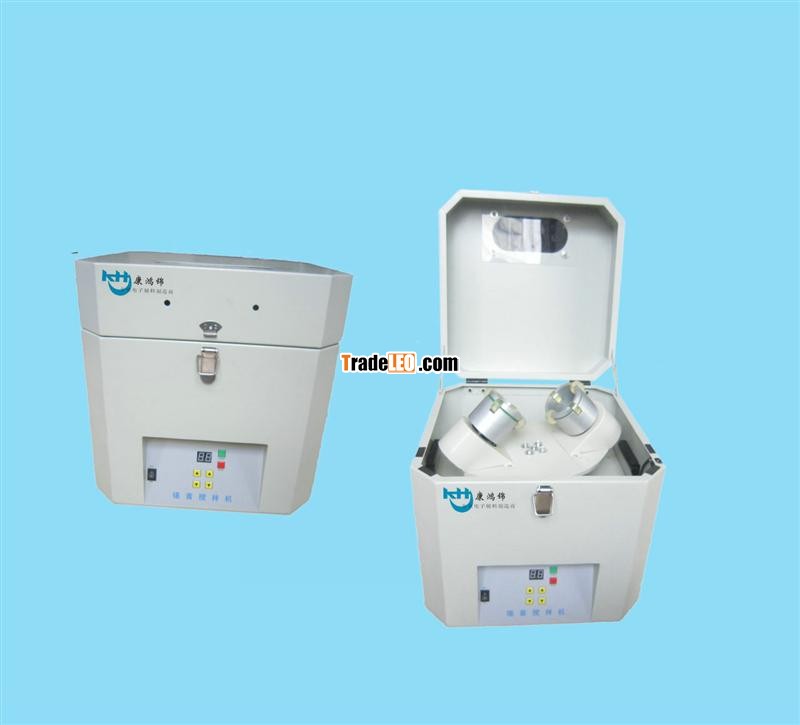

Automatic Solder Paste Mixer K-5000 for SMT Lines
Automatic Solder Paste Mixer K-5000 is suitable for lead-free and high density PCBA SMT process, PCB assembly, EMS factory.
SOLDER PASTE MIXER FEATURES
1.Realization of 45º equal quality mixing
2.Easy Operation
3.High Quality Mixing Result
4.100% High safety
Data sheet:
Brand Name | Kanghongjin |
Model No. | K-5000 |
Machine Net Weight | 32kg |
Machine Dimension | (L) 400 * (W) 400 * (H) 400mm |
Power | 40 W, AC220V.50/60HZ |
Motor | Panasonic's 40W AC motor |
Mixing Capacity | Ideal for 1 bottle of 500grams or two bottles of 500grams each. |
Motor Rotation Speed | 1350 RPM |
Revolution Speed | 500 RPM |
Application | Applicable for any common size of paste bottles |
Mixing Time Adjustment | Time adjustable with range of 0 ~ 9.9 minutes |
Warranty | 1 year |
Features | Reliable and stable |
| No noise during working |
| Special 45 degree tilting design, resulting in no contamination |
