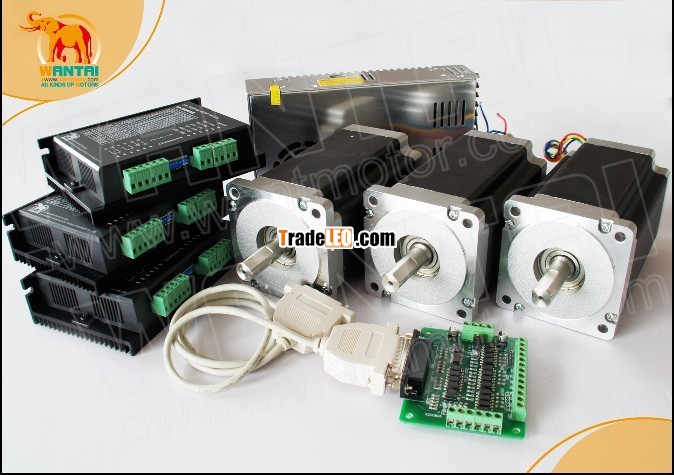

The Item includes:

3 PCS Nema 34 Stepper Motor with 1600oz-in holding torque on 85BYGH450C-012,

3 PCS Stepper Driver with 8.2A DQ860MA replacing MD882,

1 PC  Power Supply for 350W,48VDC,

1 PC Power supply for 200W, 48VDC,

1 PC Breakout Board DB25

Stepper Motor 85BYGH

Technical Specifications

Step angel ( ° ):  1.8

Motor Length L(mm):  75~151

Rate Voltage(V): 1.9~7.8

Rate Current (A): 2~6

Phase Resistance ( Ω ):  0.43~3.9

Phase Inductance (mH): 2.5~22

Holding Torque (N.m):  2.1~11.2

Lead Wire (NO.):  4/8

Rotor Inertia (kg. c㎡):  1.4~3.6

Motor Weight (kg):   2.3~5

Note: Nema 34 Stepper Motor with 1600oz-in holding torque on  single shaft, front shaft length is 37mm with 25mm flats length, the diameter for motor shaft is 14mm.

RED             A+

GREEN        A-

YELLOW     B+

BLUE           B-

Stepper Drive DQ860MA

Introduction:

  DQ860MA  is a type  of two-phase hybrid stepping motor driver, the drive voltage of it is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 7.8A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DQ860MA run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.

Features:

High performance, low price

Average current control, 2-phase sinusoidal output current drive

Supply voltage from 24VDC to 80VDC

Opto-isolated signal I/O

Overvoltage, under voltage, overcurrent, phase short circuit protection

14 channels subdivision and automatic idle-current reduction

8 channels output phase current setting

Offline command input terminal

Motor torque is related to speed, but not related to step/revolution

High start speed

High hording torque under high speed

Electrical specification:

Input voltage: 24-80VDC

Input current: ＜ 6A

Output current:  2.8A～7.8A

Consumption, Consumption：80W；  Internal Insurance：10A

Temperature: Working Temperature -10～45℃；

Stocking temperature: -40℃～70℃

Humidity: Not condensation, no water droplets

Gas: Prohibition of combustible gases and conductive dust

Weight: 500G
