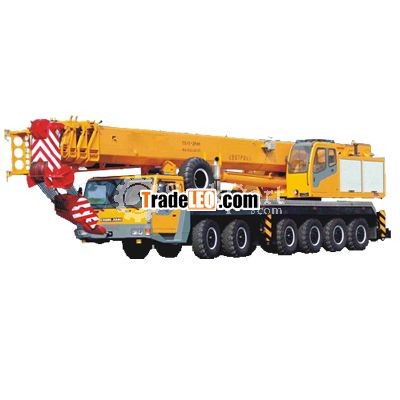

The T1130 crane will be equipped with main hook(lifting capacity 130T, weight 1250Kg), middle hook(lifting capacity 50T, weight 600Kg) and jib hook(lifting capacity 6T, weight 260Kg)
1.1 | Boom | Boom length (m) | 13 |
|
| Max. rated lifting capacity (t) | 130 |
|
| Max. lifting height (m) | 13.61 |
| Full extended boom | Boom length (m) | 49 |
|
| Rated lifting capacity (t) | 12 |
|
| Max. lifting height (m) | 49.1 |
1.2 | Jib | Jib length (m) | 9.5～15 |
|
| Max. lifting height (m) | 64.77 |
1.3 | Hoisting speed (m/min) | Main hoist | 0～110 |
|
| Auxiliary hoist | 0～58 |
1.4 | Slewing speed (r/min) |
| 0～1.6 |
1.5 | Time for crane arm full rise and lower (s) |
| 60/60 |
1.6 | Time for crane arm full extension / retraction (s) |
| 155/140 |
2. | Technical data of special chassis |
|
|
| Chassis model: |
| QZC5702J |
2.1 | Driving type |
| 12×6 |
2.2 | Upper Engine | Superstructure: model (Cummins) | 6BTA5.9-C180 |
|
| Max. Output power: | 132Kw/2200r/min |
|
| Max. Output torque: | 750Nm/1300rpm |
| Chassis Engine | Chassis: model (Cummins) | ISXe 525 30 |
|
| Max. Output power: | 391Kw/1800r/min |
|
| Max. Output torque: | 2237Nm/1100～1600rpm |
2.3 | Axle base (m) |
| 1.400×2.450×1.400×1.400×1.400 |
2.4 | Wheel base (m) |
| 2.470 |
2.5 | Outrigger span (m) longitudinal x transverse |
| 6.7x7.8 |
2.6 | Max. Traveling speed (km/h) |
| 71 |
2.7 | Max. gradeability (%) |
| 35 |
2.8 | Approach angle |
| 160 |
2.9 | Departure angle |
| 11° |
2.10 | Min. turning radius (m) |
| 14.5 |
2.11 | Tire size |
| 15.5-20 |
2.12 | Oil consumption per 100 km |
| 85 |
3. | Parameters of the Equipment |
|
|
3.1 | Total weight (kg) |
| 68500 (running status without attached main hook) |
3.2 | Axle load distribution (kg) | Axle I & II: | 25600 |
|
| Axle III, IV, V & VI: | 42900 |
3.3 | Overall dimension (m) |
| 15.940×3.05×3.90 |
