Brand:DOGO
Model:DG-B3301
Send Inquiry

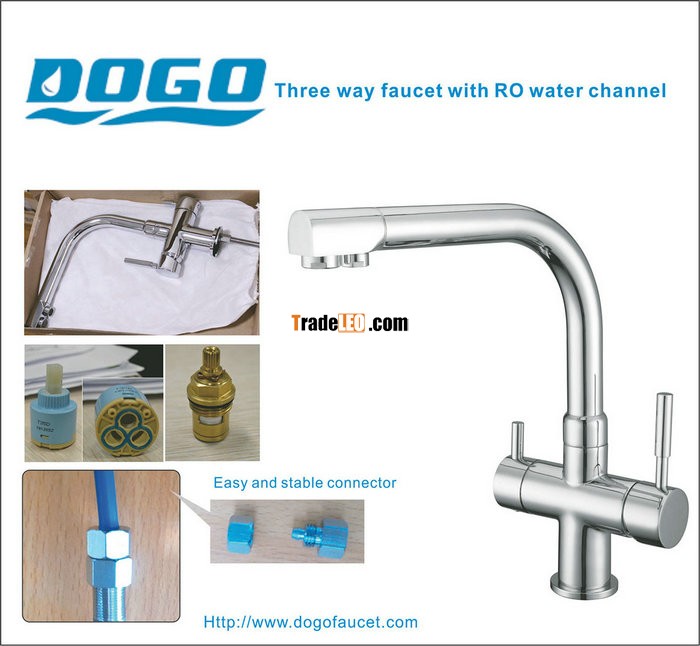

1. Brita Filter Taps Chrome 3-Way (Tri-flow) Kitchen Tap
2.Specification
| Model#: | DG-B3301 |
| Description | Three way kitchen faucet , dispenses Hot, Cold, & Filtered Water by separated channel inside |
| Material | |
| *Body | 59# Solid Low lead brass |
| *Outlet pipe | 59# Solid Low lead brass |
| *Handle | Zinc alloy or brass for optional |
| *Tighten Screw | 304 Stainless steel |
| Cartridge | Spanish SEDAL brand ceramic cartridge |
| Faucet Aerator | SUS |
| Flow Rated | Mixer water 2.2G/M base at 120Psi |
| Connector | |
| *Purifier water | 1/4"PT Screw |
| *Mixer water | 3/8" PT screw |
| Desk hole | 1-3/8"(Dia.35mm) |
| Net Weight | 2.2Kgs |
| Surface Finished | Chrome |
| Inside Package | white or color box design by customer |
| Package Size | 44x28x7CM |
| Box/Carton | 5Pcs |
2. H59 Brass Analysis
| H59 Brass Analysis | ||||||||||||||||||
| Checking Value | Cu | Zn | Pb | Al | Fe | P | Ni | Si | Mg | Cr | ||||||||
| % | % | % | % | % | % | % | % | % | % | |||||||||
| 59.6 | 38.42 | 1.24 | 0.58 | 0.066 | 0.0026 | 0.023 | 0.0074 | 0.0023 | 0.0004 | |||||||||
| Result | As | Sb | Co | Mn | Sn | Se | S | Cd | Bi | |||||||||
| % | % | % | % | % | % | % | % | % | ||||||||||
| 0.0084 | 0.0028 | 0.0035 | 0.0012 | 0.042 | 0.011 | 0.0039 | 0.0012 | 0.0028 | ||||||||||
| Responsibility Department | | |||||||||||||||||
