Brand:CHENXING
1) Euro. Style
2) China GB Standard Style
3) Trumpf-Wila Style
4) LVD Style
5) American Style
6) Amada Promecam & Amada Quick Set Style
7) Beyeler Style
8) Gasparini Style
9) Colgar Style
10) Colly Style etc ...
Material And Hardness:
1) Material : 42CrMo HRC47+/2
2) Material : 72A/T8/#45/#80 HB 280-320

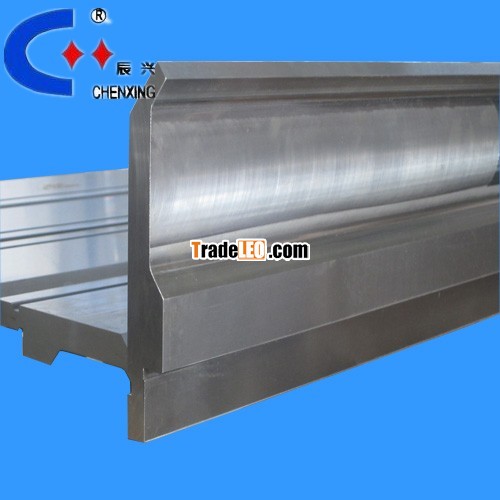

Press Brake Tooling | |
Material | 42CrMo |
Heat treatment | HRC 47+/- 2° & Ground |
Package | Wooden Crate |
Delivery time | 12 - 15 workdays |
Remark:
42CrMo = SCM440 = 42 CrMo4= 4140
The Chemical Composition of 42CrMo
C | Si | Mn | Mo | Cr | S | Ni | Cu | P |
0.38-0.45 | 0.17-0.37 | 0.5-0.8 | 0.15-0.25 | 0.9-1.2 | ≤0.035 | ≤0.3 | ≤0.3 | ≤0.035 |
HRC 47+/- 2°
Cr12Mov = SKD11
The Chemical Composition of Cr12Mov
C | Si | Mn | Cr | Mo | P | S | V |
1.45~1.7 | ≤0.4 | ≤0.35 | 11.0~12.5 | 0.4~0.6 | ≤0.03 | ≤0.03 | 0.15~0.3 |
HRC60°-62
Thickness can be processed for Hot-Rolled Steel & cold rolled steel:3 - 6 mm
Other material LD = D2 = DC53 is available for us too.
Advantage of sectional tools:
1. Most tools can be easily loaded by a single operator.
2. Easy to store
3. All sectionalized tools come pre-cut in nine different pieces.
4. Most sectionalized punches include two ear pieces (horns)
5. Nitrex (HRC-70) is standard on every punch in the tooling line.
6. Special tooling available.
