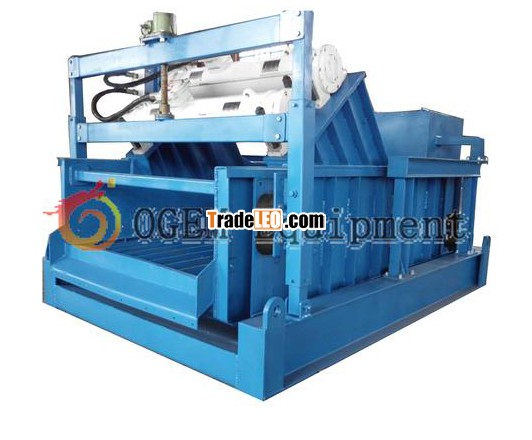

OGEM AJS series shale shaker is the 1st phase solids control equipment. It is mainly used separate large particle in drilling fluid. Shale shaker performance decides subsequent equipments process effect and usable life. It’s the absolutely necessary equipment in solids control system.
OGEM shaker can be used in O&G drilling, metallurgy, construction, chemical, food, beverage, etc. industry
AJS Series Shaker has following benefits, Lower energy consumption, Higher separation efficiency, Better filtration performance, Less noise, Easy to install and maintenance, Longer usable life, Wide range applications
Model | AJS 603L | AJS 604L | AJS 703L | AJS 704L | AJS 833L |
Vibration Mode | Linear motion | ||||
Vibration Motor | 2*1.5KW | 2*1.72KW | 2*1.5KW | 2*1.72KW | 2*1.72KW |
Vibration Force | ≤7.0G | ≤7.0G | ≤7.2G | ≤7.3G | ≤7.0G |
Double amplitude | 5.5-6.0mm | 5.5-6.0mm | 6.0-7.2mm | 6.0-7.2mm | 5.5-6.0mm |
Treating capacity | 100m3/h 440GPM
| 140m3/h 616GPM | 120m3/h 528GPM | 160m3/h 700GPM | 140m3/h 616GPM |
Deck adjustment | -1°-5° | -1°-5° | -1°-5° | -1°-5° | -1°-5° |
Frequency | 380V/50HZ,460V/60HZ or Customized | ||||
Screen Area | 2.05m2 | 2.70m2 | 2.2m2 | 2.94m2 | 2.7m2 |
Screen Size | 585*1160mm | 585*1160mm | 700*1050mm | 700*1050mm | 830*1080mm |
Screen Panel | 3 | 4 | 3 | 4 | 3 |
Weir height | 746mm | ||||
Decibels | ＜85db | ||||
Starter | Explosion proof control cabinet | ||||
Weight | 1550KG | 1700KG | 1750KG | 2100KG | 1700KG |
REMARK | Capacity tested from drilling mud is 1.2g/cm3 weight.45s viscosity and screen is 40 mesh | ||||
