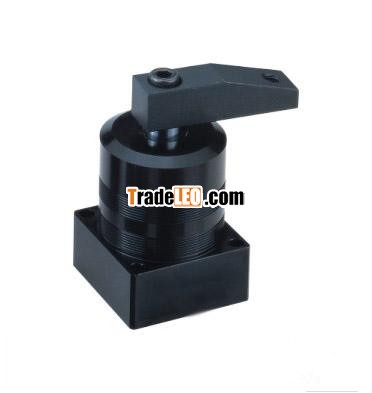

FASC  Air Swing Clamp Cylinder

Product Introduction

◆The product is ideal for mass production on a special   purpose machine and jig on machining center.  It will greatly upgrade production efficiency.

◆When the air cylinder actuate, and the piston moves  downward, the clamping arm will swing to a rated angle.

  Then it lowers until the work piece is clamped securely.

◆To avoid too fast motion , a flow control valve is suggested to connect to the air inlet ports (A, B) on the swing clamp cylinder.

   Do not clamp work piece while the clamp is swinging to avoid damaging on the cylinder barrel and internal parts.

◆When increasing length of clamping arm is required, be sure not to exceed 1.5 times of the original length.

◆The cylinder body is manufactured from aluminum alloy. The surface is hard membrane treated for maximum smoothness

  on inside surface and long service life.

Specification

Bore of Cylinder (mm) Contact Infomation Send Inquiry Company name:Shenzhen Fixmeans Co.,LTD Status:[Offline] [Send message] [Chat] Business contact:Ray Lew(Ms.) Telphone: Area: Caribbean Region-Bermuda Address:No. 3-4 Building, Long Tang New Village, Mingzhi Street, Longhua Town, Baoan District, Shenzhen City
