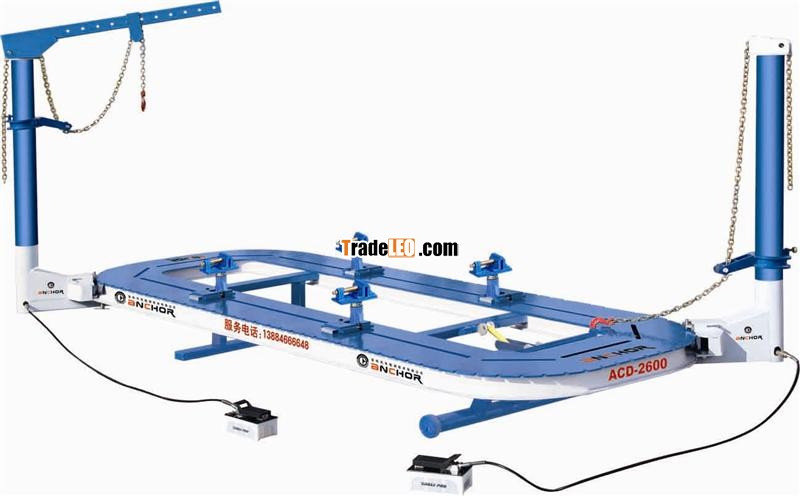

Model:ACD-2600
Main Specification
Platform Length | 5200mm |
Platform Width | 2000mm |
Platform Height | 540mm |
Max Pulling Force of Oil Cylinder | 10T |
Measurement System Error | ±3mm |
Post Working Range | 360° |
Total Weight | 2.0T |
DEscriptION
1. Reformed boom, more rational use, safe and convenient.
2. Secondary lifting rod, lightweight, and effort-saving.
3. Patented universal clamps, the maximum jaw opening 118mm, to clamp beam.
4. Mechanical laser measurement system capable of three-dimensional coordinate measuring, easy to use, high accuracy, long service life.
5. Sheet metal pull chain and a variety of powerful chains, to facilitate use, sheet metal with a 5-year warranty.
6. Hydraulic system guaranteed by the ENERPAC company and SPXPOWERTEAM company of United States.
7. Latest and authoritative data equipped with the bench.
