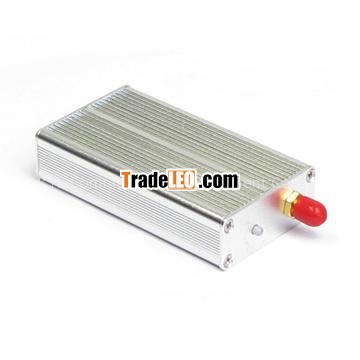

KYL-300I Specifications:

Power output: 5V DC (customized)

RF power: ≤500mW (customized)

RF effective rate: 1,200/2,400/4,800/9,600/19,200bps

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional

Frequency band: 433MHz, 450MHz, 470MHz or ISM others

Interface: standard RS-232/RS-485/TTL

Communication mode: half-duplex

Offering a transparent data interface, it is suitable for any standard or non-standard user protocols

Channel: 8 (default), 16/32 (customized)

Receive current: <28mA(TTL connect)

Receive sensitivity: -123dBm at 1,200bps, -118dBm at 9,600bps

Transmitting current: <350mA

Sleep current: <20uA

RF line-of-sight range: 2km (BER = 10 to 3 at 9,600bps) and 3km (BER = 10 to 3 at 1,200bps)

Size: 80 x 45 x 20mm (without antenna port)

Application:
Remote Control
RS485 to wireless converter
Wireless data telametry
Industry automation
Wireless data communication
Wireless LED display
Wireless PTZ remote control
