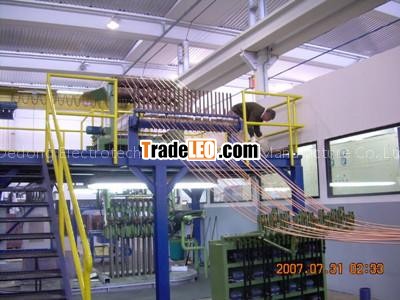

Model:UTY-4.5/6A
Type SYLZ—diameter8-12.5—3000
A.Scope of supply
1.Body of furnace
Cover
frame
Shell of inductor
Copper ring
Loop
Water jacket
Iron core
Furnace burden
Nickelchromium-nickelsilicon thermocouple
2. 6-head Haul off
Platform
Touch screen PLC control servo motor driving system
Level automatic tracking system
Cooling water system
Crystallizer suspension system
Crystallizer
Protective sleeve of Crystallizer
Graphite die of Crystallizer
3.Electrical System
Power Supply Cabinet
Voltage regulation cabinet for melting furnace
Voltage regulation cabinet for holding furnace
Operating Desk
4. Rod coiler system
5. 15tons Radiant furnace
B.Technical Information
1. Installation Size:20m×6m×6.5m(Except for 15tons radiant furnace)
2. Power supply requirement
3. Water source requirement:Subject to no scaling happened
Flow:50m3/hr
Pressure:over 5bar
Circulating Pool:50m3(as per drawing)
4.Personnel requirement:2persons/shift
C.Technical Data
1.Copper cathode shall comply with LME technical data
2.Graphite sheet: 3299
3.Charcoal:shall be dried
4. Nos. of head 6pcs
5.Pitch 1~5mm adjustable
6.Coiling weight of single head 2tons
Annual output 3000tons
