Description

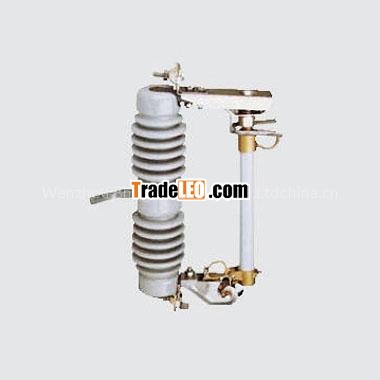

1. Type: fuse cutout, drop out fuse cutout  SRF-9

    Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.


2. Specification:

Type: SRF-9
Rated voltage(kV): 15-27
Rated current(A): 100 / 200
Breaking current(A): 10000 / 12000
Impuse voltage(kV): 125
Power-frequency withstand voltage(kv): 45
Creepage distance(mm): 355
Material:Ceramic
Weight(kg): 8.8
Dimensions(CM): 45*34.5*12

3. Welcome to contact us to more details.  Some details could be ordered according to the requirement of customers.
