Model:XZ20
Send Inquiry

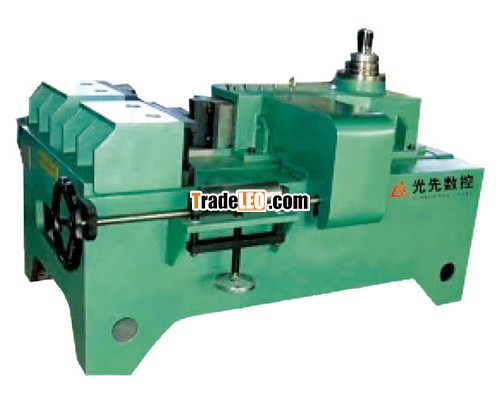

ANGLES STRAIGHTENING MACHINE MODEL XZ20/XZ250
Technical parameters
Model | XZ20 | XZ250 |
Functions | Straightening of angles, channels, squares, etc. | |
Max. size of straightening (mm) | ∠200×200×20 | ∠250×250×32 |
Times of straightening (min-1) | 25 | |
Working stroke (mm) | 20 | 30 |
Adjustable stroke (mm) | 100 | |
Power of motor (kW) | 7.5 | 15 |
Way of driving | Mechanical way | Mechanical & hydraulic way |
Use
This is three-point way straightening machine, which has two adjustable supporting points and one pressure point.
Specially used for straightening of angle, round steels, channel steels, band steel, and square steel.
