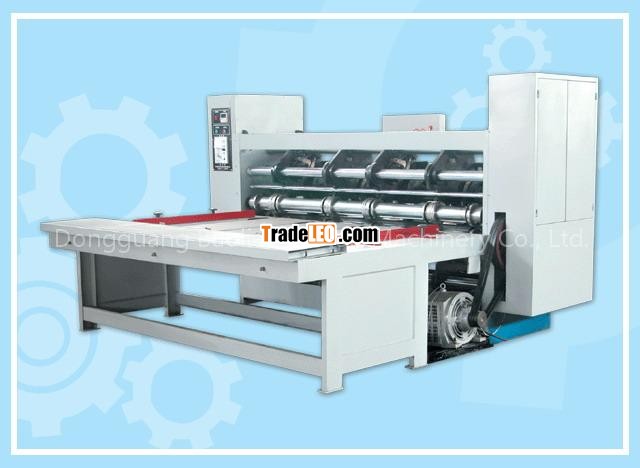

Technical Parameter of Cycle Slot Cut Corner Machine:
| Max.Produce speed | 50pcs/min | 60pcs/min | 60pcs/min |
| Max.print area(mm) | 1450×(1800、 | 1600×(2000、 | 1200× |
| 2000, 2200,2400) | 2200,2400,2600) | (1200,2200,2400) | |
| Max.speed | 350×650mm | 350×650mm | 300mm |
| Adapt to | 2-11mm | 2-11mm | 2-11mm |
| cardboard thickness | |||
| Slotwidth | 7mm | 7mm | 7mm |
| Cut corntr deepness | 45mm | 45mm | 45mm |
| Maximum depth of slot | 300mm | 300mm | 240mm |
| Power(kw) | 3、4 | 5.5 | 4 |
Features of Cycle Slot Cut Corner Machine:
Feeding table adopts chain style manual feeding paper.
1. Slot blade phase adopts 360 degree electric position and negative turnslightly adjust, blade axes treated by rigidity chroming electroplate, andnicety grinding, firmness durable.
2. Gear lubricate, adopt spout out style cyc. Reduce noisr, prolong gear using life.
3. Adopts hackle blade.
4. The Cycle Slot Cut Corner Machine can match with stiletto equipment.
