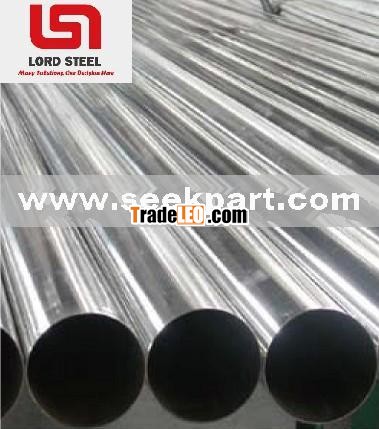

normal style="MARGIN: 0cm 0cm 10pt">UNS S44660/Gr.26-3-3 Super ferritic stainless steel tube for surface condenser

normal style="MARGIN: 0cm 0cm 10pt">LORD STEEL INDUSTRY COMPANY LIMITED

normal style="MARGIN: 0cm 0cm 10pt">Thanks to its outstanding resistance to general and localized corrosion attack properties, Titanium has been successfully established as the commonly used material for seawater cooled heat exchanger tubing,be it for power plants' surface condensers, thermal desalination plants'heat exchangers or heat exchangers used in the chemical and petrochemical processing industry. In the current material market context in which Titanium price has increased significantly, engineering companies and end-users have shown an increasing interest for more cost-effective alternative solutions using what are called super alloys which are highly alloyed stainless steels showing a far better corrosion resistance than conventional stainless steels.That is the background for the inventation of UNS S44400 and UNS S44660 super-ferritic stainless steel tube. Nowadays, with the development of VOD technology and advanced tube processing technology, people get great profit from such kind of new material. LSI devote all his energy in such material and got great achievement in such kind of material. We and our people are most professional in such material, when you order it or has any queries, please contact us.

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal">OD Range: 0.50” to 1.50" (12.7mm to 38.1mm)

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">Wall Range:  0.016”-0.10" (0.40mm-2.50mm)

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">Max Length: 131' (40 m)

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">Grade: UNS S44660 / Gr-26-3-3

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">Specifications: ASTM A-803, ASME SA-803, ASTM A-268, ASME SA-238

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">
ORDINARY TESTS:
1.100% Hydrostatic Test
2.100% Eddy Current Test According to ASME SA1016
3.Intergranular Corrosion Test By Lot according to ASTM A763
4.Pitting Resistance Test according to ASTM G48 Method C.
5.Residual Chloride Test According to ASME SA803
6.In Compliance With ASTM A803-88 And ASME SA803
7.In Compliance With ASTM A380
Marking: Brand Name, Alloy Designation, O.D And Wall Thickness, Standard, Heat Number, Bundle Number (According to Clients' special requirements)

LORD STEEL INDUSTRY (Suzhou) COMPANY LIMITED
Many Solutions, One Decision Here.

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal">

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal">Advantages:

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">1.Significantly higher modulus that allows the use of a lighter wall with less problem of vibration

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">2.Higher steam and water droplet erosion resistance allowing a greater cushion in cases where upset conditions may occur

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">3.Weldability to other stainless steels

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">4.Higher strength and modulus which allows more tolerance for those tough designs and installations

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">5.Superior Corrosion Resistance

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">This alloy is specifically designed for applications where chloride induced pitting, crevice and stress corrosion cracking may be encountered and is used in:

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">1.Electric Power Plant Condensers and Feedwater Heaters

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">2.BOP Exchangers

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">3.Various Heat Exchangers in Chemical, Petrochemical and Refining Applications

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">4.Desalination Heat Exchangers

normal style="MARGIN: 0cm 0cm 10pt; LINE-HEIGHT: normal; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto">5.Flue Gas Handling Systems
