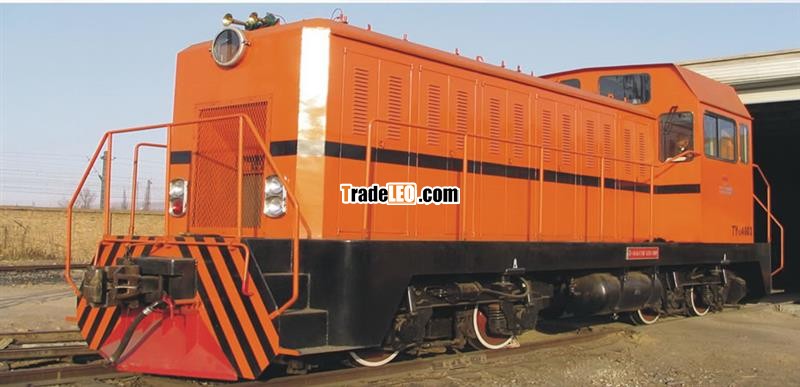

TY360 industrial diesel locomotive
The model TY360 industrialdiesel locomotive is mainly used in the industrial and mine enterprises,forestry industry, construction fields and local railway for transportation andswitching service. It has been succeeded in molten iron tank transportation inthe steelworks. The transmission system is that the hydraulic transmission boxdriven by the engine transfers the power to the gearbox by universal shaft. Thegearboxes are on the axles to rotate the wheel and make the car run.
| Dimension ( LxWxH) (mm) | 11420x3200x4300 |
| Axle arrangement | B-B |
| Length between bogie pivot centers | 5400 |
| Wheel base/td> | 1800 |
| Axle Number | 2 |
| Track gauge (mm) | 1435 |
| Height from top of rail to coupler center(mm) | 880±10 |
| Draft gear | 13 type couple, buffers on both end |
| Wheel diameter ( mm) | 840 |
| Min. curve radius (m) | 60 |
| Max. Speed (shunt/small operation) (km/h) | 30/60 |
| Transmission mode: | Double cycling disk hydraulic transmission,hydraulic |
| Brake mode | Air brake and hand brake |
| Coupler | No.13 coupler and ST buffer |
| Power of the engine(HP) | 360/380 |
| Max. starting tractive effort(KN) | 105 |
Vehicle driven by an engine-driven hydraulic transmissions, transmissions spread through cardan shaft drive axlegear box, axle gear box mounted on four axles, drive wheels, traction power transmission.
Performance parameter:
Gauge-1435mm
Axle arrangement b-b
Fixed 5400mm
Wheelbase 1800mm mm
Wheel diameter 840mm
Coupler Center height 880 ± 10MM
Maximum application speed (/small shunting operations) 30/60km/h
Overall dimensions 11420x3200x4300mm
Minimum curve radius 60M
Transmission mode dual circulation round hydraulic fluid power, hydraulic directional
Air brake + brake hand brake
Coupler type 13th ST and coupler draft gears
Engine is rated at 360 horsepower/380 HP
Maximum starting tractive force 105kN
Kerb weight: 40t
| | |
| | |
| | |
| | |
| | |
| | |
