Bimetallic parallel twin screw and barrel for weber plastic extrusion machine

2016-10-29 09:17 Views:167

Price:Negotiable
Brand:JT SCREW
Model:JT-PD-37

Send Inquiry

Advantage of JT SCREW Compared to others

1.Best Raw Material and Advanced Nitriding Technology,we can provide screw and barrel for weber, kruss maffei, buttenfield, cincinnati ans so on structure.

2.Anti-corrosion and Wear-resisting Duplex metal Spraying Technology: special alloy powders being sprayed and welded on the screw's ridge, different alloy and welding methods for different functions.

3.More than 20 years’ experiences, Professional engineer design and thousands of drafts for you

4.Fast and on time delivery.

5.Longer lifetime and quality guarantee, optimal plasticization and logistic quality.

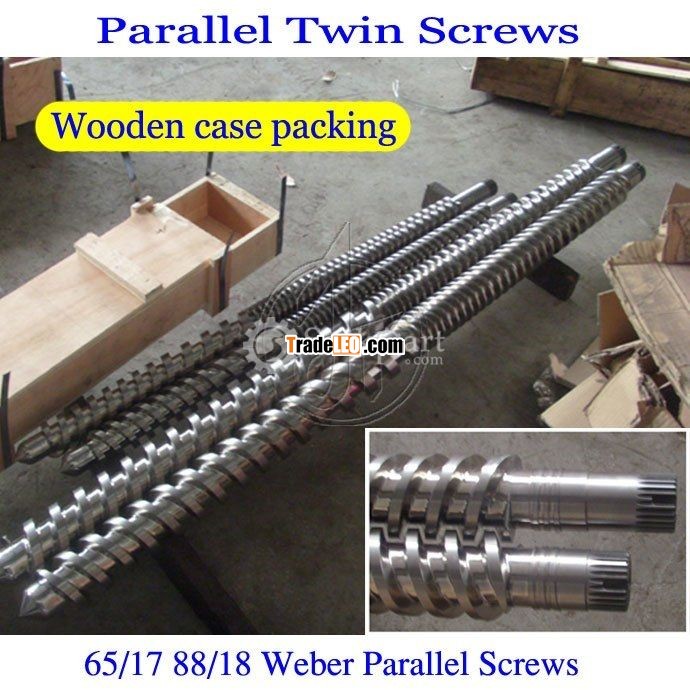

Parallel twin screw and barrel
Diameter	45mm-90mm	Min.Order	1 set
Materials	38CrMoAIA 42CrMo(JIS SCM440) 9Cr18MoV CW6Mo5Cr4V2 SKD61	Discount	Available
Application	PP,PE,HDPE, LDPE,LLDPE	Payment Term	T/T, L/C, Western Union
Technical Process	1.Rough Machining 2.Quenching and Tempering 3.Finish Machining 4.Nitriding 5.Spraying and welding with alloy power 6.Screw polishing	Technological Parameter	Roughness	Ra 0.4um
			Hardness of Quenching and Tempering	HB 240-280
			Depth of Nitride Layer	0.5~0.8mm
			Hardness of Nitride	HV 900-1020
			Alignment of Screw	0.015mm
Packing	Wrapped up with film in Wood Case	Port Departure	Ningbo/Shanghai Port
Guarantee	twin parallel screw and barrel : more than 2 years

Advantages of parallel twin screw and barrel

1.Lower rotation speed, smaller shear stress

2.Good plasticization, high productivity, small shear force, stable pressure, less wear /tear and low cost.

3.Be widely used in PVC products processing, especially for the output over 350Kg / h, costing less and more mature technology than conical twin-screw and barrel.

4.Successfully applied in PVC plate, pipe, profile, pellet and mold, and solved the technical problem of low foaming, high foaming, high filling, wear and corrosion.
