Model:HB-DJ806

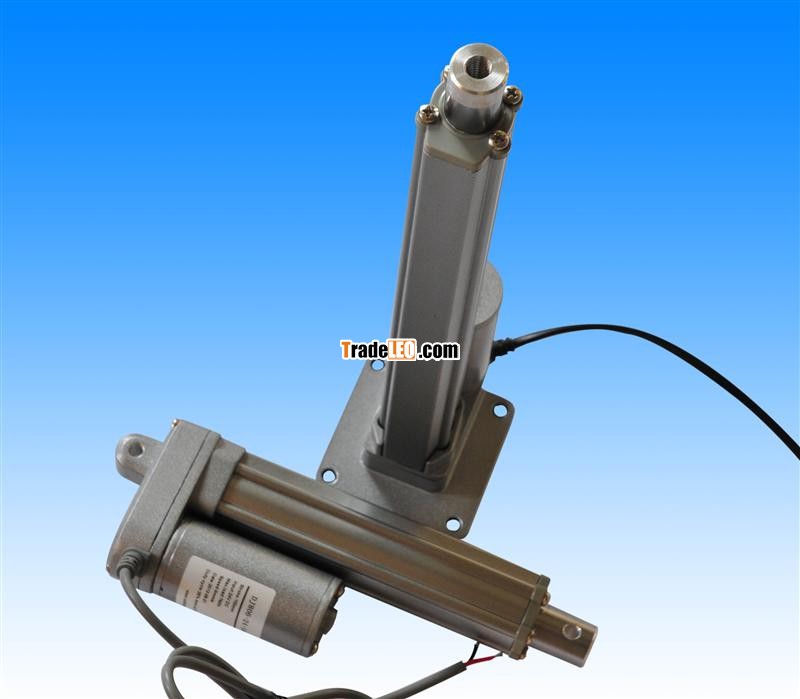

Specification of Linear Actuator(Model No.:HB-DJ806)
Brand | HB |
Type | Linear actuator |
Model | HB-DJ806 |
Input Voltage | 12/24/36/48VDC |
Max Charge/Push Force | 1200N |
Speed | 5-100mm/s |
Stroke | 20-305(Optional) |
Limited Switch | Build-in(non-adjustable) |
Operation Temperature | -26~65°C |
Protective Class | IP65 |
Duty Cycle | 25% |
Min Installation Size | S+105mm(standard) S+120(S>300mm) |
Life Span | >15,000 times |
Material | Aluminium alloy |
Cover Color | Black/Slivery White |
Optional Fittings | Potentiometer |
Screw type | ACME |
Application | Industry |
MOQ | 60 PCS |
Information about Linear Actuator Basic Installation Dimension (HB-DJ806)
Actuator Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 |
Basic Installation Stroke(mm) | 155 | 205 | 255 | 305 | 355 | 405 |
With potentiometer installation | 185 | 235 | 285 | 335 | 385 | 435 |
Packing | Shipping |
1. Carton packing 2. Wooden packing 3. customize All linear actuator can be packed according to customer’s requirement.
| By sea, air, express( DHL, TNT, UPS, Fedex, EMS )
|
