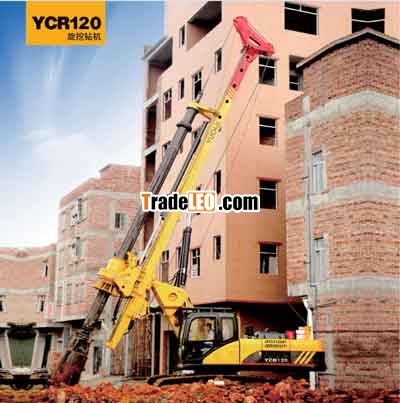

Rotary Drilling Rig;yuchai YC120R Rotary drilling rig
Technical Specifications
| Item | Parameters | ||
| Chassis | Engine Model |
| 6BT5.9-150 |
| Rated Power/Speed | kW/rpm | 112/1950 | |
| Outer Width of Crawler | mm | 2990 | |
| Width of Crawler Plate | mm | 600 | |
| Hauling Force | kN | 198 | |
| Power Head | Maximum Torque | kN·m | 120 |
| Speed | r/min | 8-28 | |
| Maximum Pressure | kN | 120 | |
| Maximum Pulling Force | kN | 120 | |
| Pressurized Cylinder Stroke | mm | 3600 | |
| Hoist | Main Hoist |
|
|
| First Layer of Lifting Force | kN | 125 | |
| Maximum Lifting Speed | m/min | 60 | |
| Diameter of Wirerope | mm | Φ22 | |
| Auxiliary Hoist |
|
| |
| First Layer of Lifting Force | kN | 50 | |
| Maximum Lifting Speed | m/min | 65 | |
| Diameter of Wirerope | mm | Φ16 | |
| Mast | Rake Angle | ° | 5 |
| Left/Right Tilt Angle | ° | ±4 | |
| Hydraulic Pump | Maximum Pressure | Mpa | 34 |
| Hole Depth Hole Diameter | Maximum Drilling | mm | 1500 |
| Maximum Drilling Depth | m | 40 | |
| Drill Pipe | Drilling Pipe | mm | 377 |
| Working Weight | t | 35 | |
