JS2000 concrete mixer
2016-10-29 01:56 Views:232
Price:Negotiable
Model:JS2000
Send Inquiry
| Product Description |

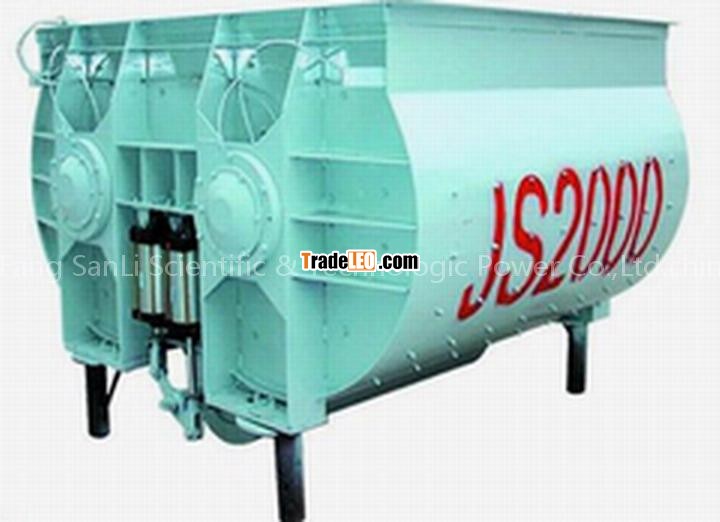

Concrete mixer(JS2000)
Well and High Quality Control,prompt Delivery,Competitive Prices,Small Order Acceptable technical parameter of JS2000 concrete mixer Main technical parameters of JS2000 | Rated discharging volume | 3200L | Rated feeding volume | 2000L | Rated productivity | ≥100m3/h | RPM of mixing blade | 23r/min | Number of mixing blades | 2×9 | Model of mixing motor | Y280s-4 | Power of mixing motor | 75KW | Model of winch motor | YEZ180M-4 | Power of winch motor | 18.5KW | Model of water pump motor | KQW65-100 | Power of water pump motor | 3kW | Discharging height | 3800mm | Discharging mode | JS2000: manual; JS2000D: electric; JS2000Q: pneumatic; | The maximum particle size of aggregate | 80/60(pebble / broken stone) mm | External dimension (L*W*H) transportation state | 5860*2250*2735mm | External dimension (L*W*H)Working state | 10560*3876*10710mm | Weight of the whole machine | 15000kg |
