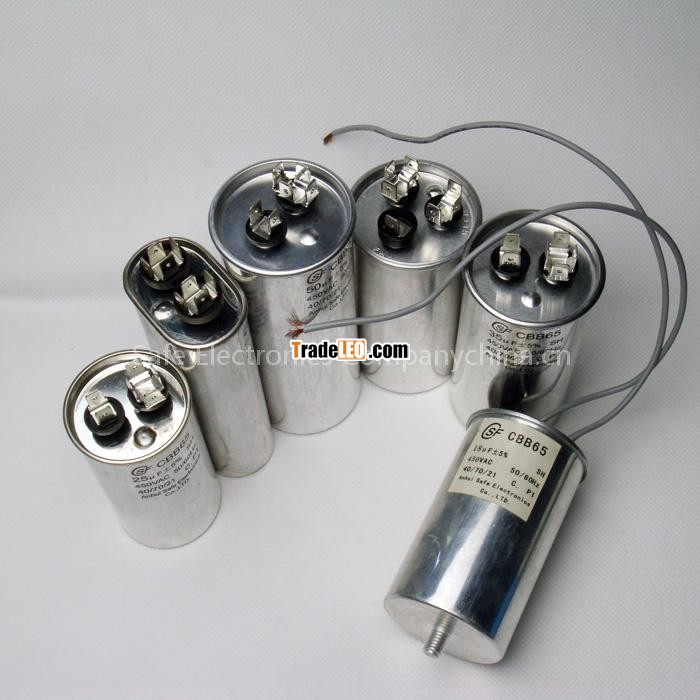

Motor Run Capacitor CBB65A

The capacitor takes heavy-edge metallized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.

CBB65 series motor run capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system.

Technical Specification
Executive standard: GB36671-997
Technical features:
Climate type: 40/70/21
Capacitance tolerance: +-50%
LR: >=3000M&Omega. &muF
Dielectric dissipation Factor: Tg&delta<=0.002(50Hz-100Hz)

Rated Voltage: 200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC

Norminal Capacitance: 3,4,5,7.5,10,12.5,15,17,20,22.5,25,30,35,40,45,50,55,60,70,80,100,25+5,30+5,35+5,50+5,60+5,70+5,80+5...MDF,microfarad
