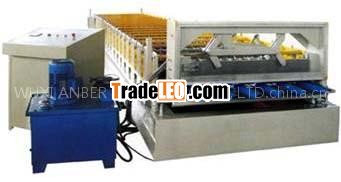

The line consists of decoiler, guiding equipment, roll forming section, cutting equipment, supporter, hydraulic system and control system. The wall and roofing which are produced by this machine have neat external appearance, slick ripples, high utilization and strong strength. The forming process is: Decoiling →Guilding →Roll forming → Cut to length → Supporter
- Material specification: Q235 or 34KSI
- Material thickness: 0.4-0.7mm
- Max capacity of decoiler: 5000kgs
- Control system: PLC
- Main motor power: 4kw
- Hydraulic power: 5.5kw
- Working speed: 10-12m/min
- Power: 380V/3Ph/50Hz or at the buyer’s requirement
