Model No.:LJXZ01
Product Origin:China
Brand Name:TC-JIAHE
Price Terms:EXW, FOB, CIF
Payment Terms:T/T, irrevocable L/C at sight
Certification:

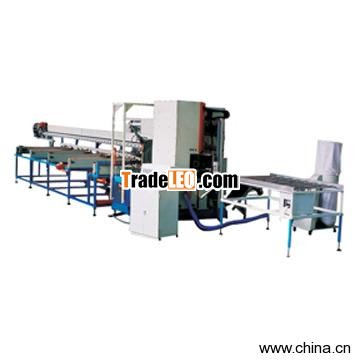

Description:Features: 1) Used for auto profile 45° and 90° cutting, v-cutting, water slot milling, air pressure balance hole milling and other holes and grooves milling2) Automatically finishing processing and recognizing for profiles from cutting to milling, and controlled by industrial computer automatization3) Main components including center control table, auto-conveying device, manipulator, cutting device, milling device, auto-discharging device and scrape conveying device, etc.4) Many profiles in the auto-conveying table can automatically feed5) Computerized manipulator automatically recognizes different profiles and locate6) Two-axis computerized milling cutters in the milling device can mill various water slots and holes according to different requirements for profiles45° - 90° angle and V notch would be cut automatically in the cutting device 7) Advanced technique, high automatization, good performance, operating simply and using widely 8) Automatically program and select processing programs 9) Optimizing the processing and making good use of profiles Parameters: Input voltage: 3N - 50Hz, 380/220VInput power: 18kWAir pressure: 0.6 - 0.8MPaAir consumption: 200L/min Processing profile height: 35 - 130mmProcessing profile width: 30 - 120mmProcessing range: 400 - 6,000mmOverall dimensions: 1,2500 x 3,500 x 2,400mmWeight: 4,200kg
