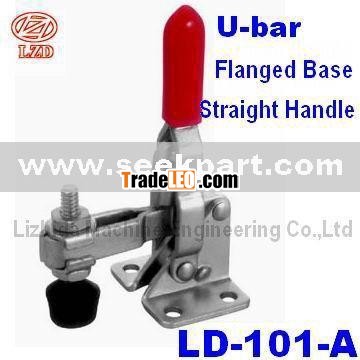

Vertical Handle Toggle Clamp

Models : LD-101A

Weight : 60g

Holding Capacity : 500N

Bar Swing : 100 degree

Handle Swing : 56 degree

Vertical Handle Toggle Clamp Features:

1.fast and flexible loading and clamping with stable clamping force

2.safe and convenient to operate ,

3.high effciency

4.greatly reducing operation time for processing, assembling,fixing

5.clamping all kinds of parts.

Application Field:

1.widely used in Printing machinery manufacturing industry as the machines parts, such as Screen Printing Machine.

2.widely used in logistics equipment manufacturing industry as the fixture and the location pin on the injedtion jig of steel line.

3.widely used in Electronics industry as the fixture on the annular assembly line , the detect jig, testing process, chain, assembly line and detected equipment, as the parts of the electronic manufacture equipment.

4.widely used in automobile industry as the fixture on the detect jig.

Note:

Our company manufactures fixture of different models.we can design and manufacture the fixtures according to different reauirements in size and type from the customers
